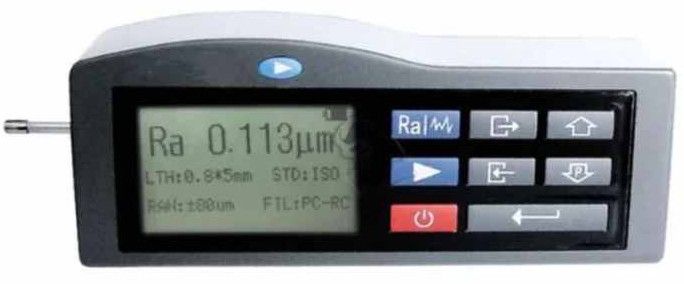

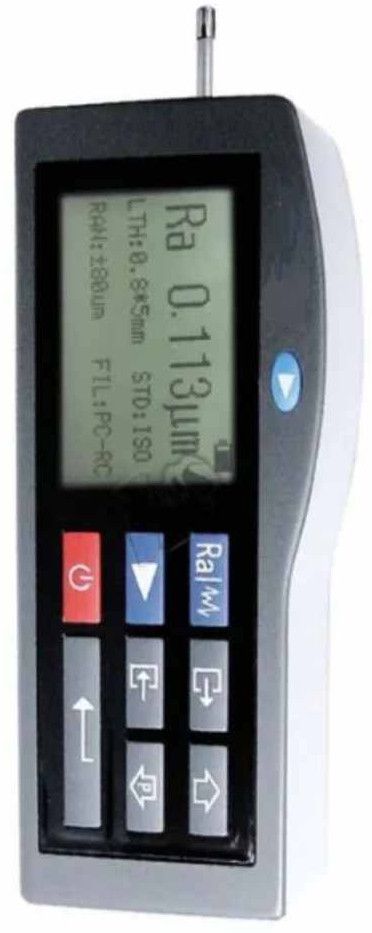

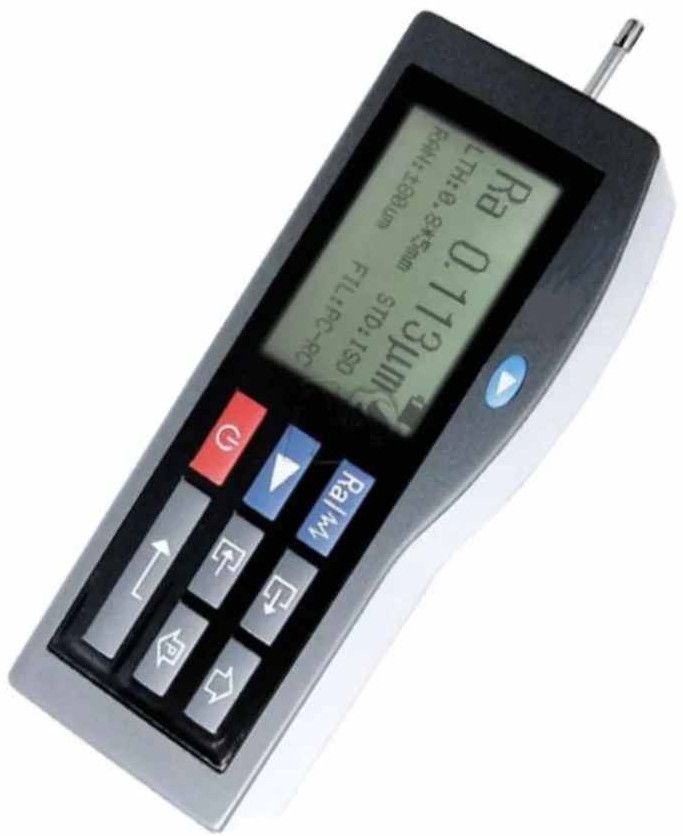

LCD Surface Roughness Tester

Features:

Over dozen measurement parameters applicable for roughness test of various mechanical manufacturing processes inproduction lines, workshops and labs.

High accuracy inductive pickup

Easy operation manual and large LCD display with backlight.

Pickup stylus position indicator.

Transfer to PC via RS232 with advanced PC Software TIMESurf for more analyzing management.

Connected with printer to print the data and graphs on-site.

Storage and review function for up to 15 groups data and graphs.

Rk data and graphic are available.

Digital filter: RC, PC-RC, Gauss, D-P

Optional delicate accessories for more accurate results and easier operation eg. measuring platform, steel support and so on

Conform to ISO standard, compatible with DIN, ANSI and JIS standard.

Top quality Li-ion rechargeable battery.

Standard Delivery:

Main unit 1

TS100 standard pickup 1

Roughness test plate Ra 1

Charger 1

Protection nose 1

Optional Accessory:

TS110 pickup for curved surface

TS120 pickup for small holes

TS130 pickup for deep grooves

TS140 right-angled pickup

Measuring platform TA620

Leveling table TA630/TA631

Magnetic stand

Steel adapter (Φ8)

Steel adapter (L-attachment)

Printer TA230

Steel support 1

Dataview 1

Communication cable 1

TIME certificate 1

Warranty card 1

Instruction manual 1
