Measurement Gauges & Gauge Fittings

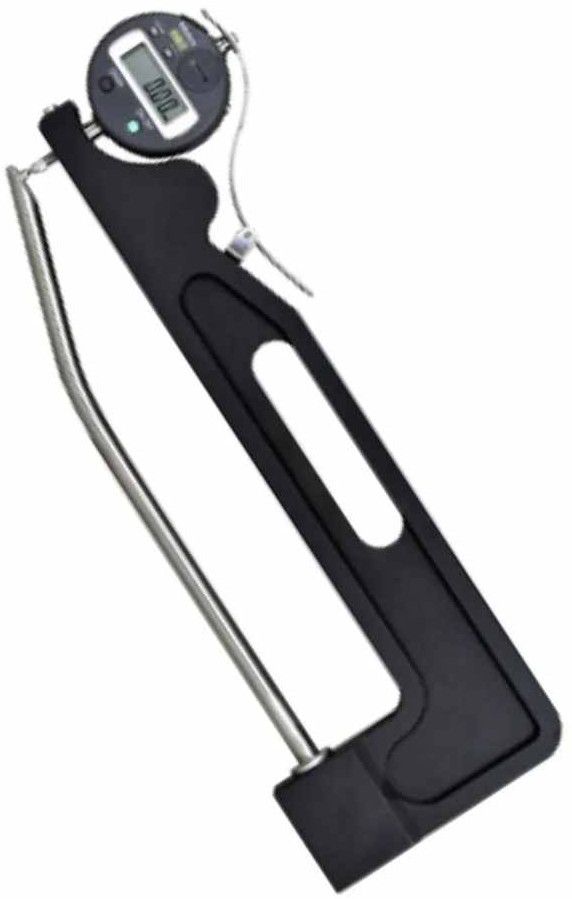

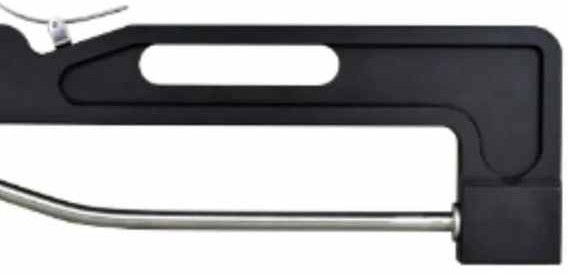

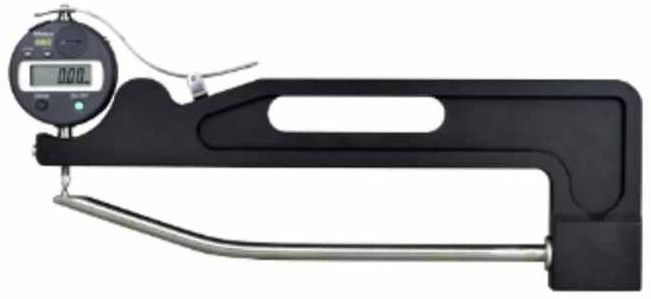

Digital Glass Bottle Wall Thickness Gauge is a manual operating gauge.

Its used for measuring the wall thickness of glass bottles.

Thickness measurement for glass bottle production.

Nunes Instruments , is  in the field of Instrumentation Sales Service & Repairs with 40 years of experience.  We provide service & repairs to your old high precision instruments and equipment.  We provide cost effective service & Repair to any brand, any make instruments  with service warranty. Why not try once?

Instruments of Any Type, Any Make, Analog/Digital, Any Condition  Indian or  Imported

Laboratory Instrument, Test Equipment,

Scientific, Measuring, Precision Instrument,

Analytical, Bio Medical, Survey, Electrical,

Electronic Instruments ,Weather, Metrology

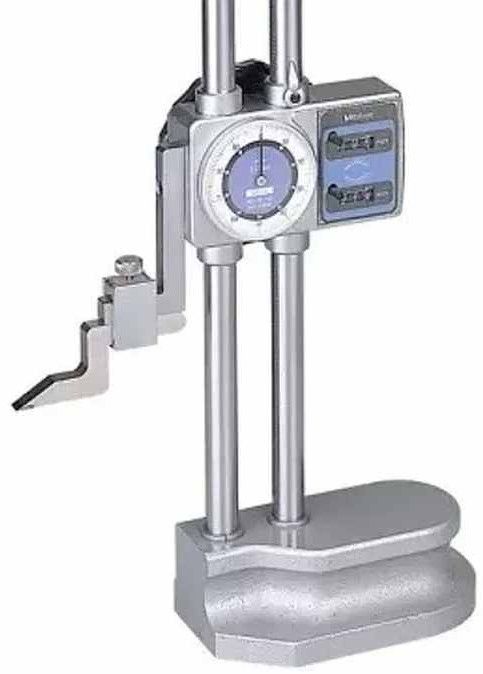

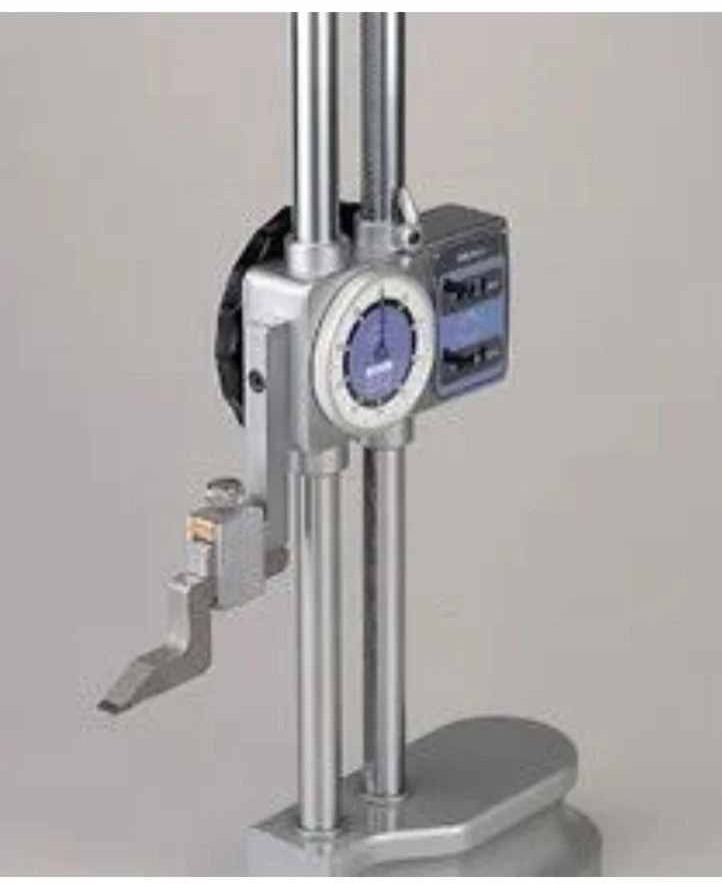

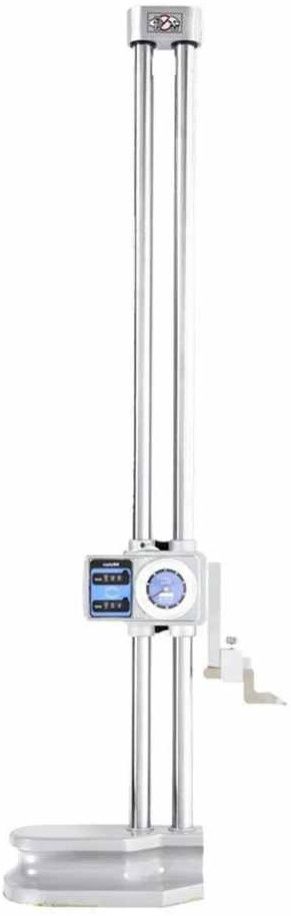

The Height Gage with Digital Counter is a precision measurement tool used to determine the height, depth, or step measurements of an object with high accuracy. It features a digital counter for easy, precise readings and is commonly used in mechanical engineering, machining, and quality control applications.



Key Features:

Digital Display for easy-to-read, accurate measurements.

High Precision with measurement accuracy typically up to 0.001 mm or 0.0001 inches.

Versatile Application ideal for measuring height, step, or depth of various objects.

Large Measuring Range typically from 0 to 300 mm or 0 to 12 inches.

Sturdy Construction made from high-quality materials for durability.

Easy-to-Use with a smooth vertical movement and locking mechanism.

Zero Setting Function allows for easy calibration and zeroing of the scale.

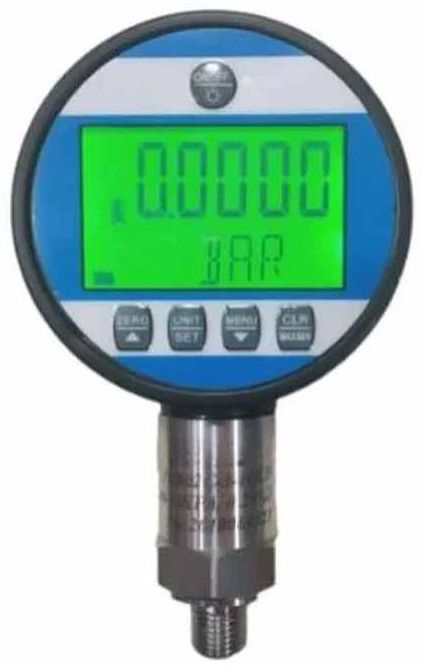

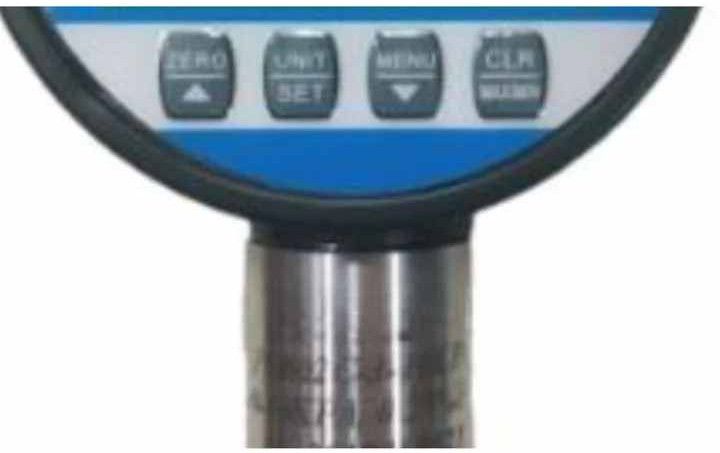

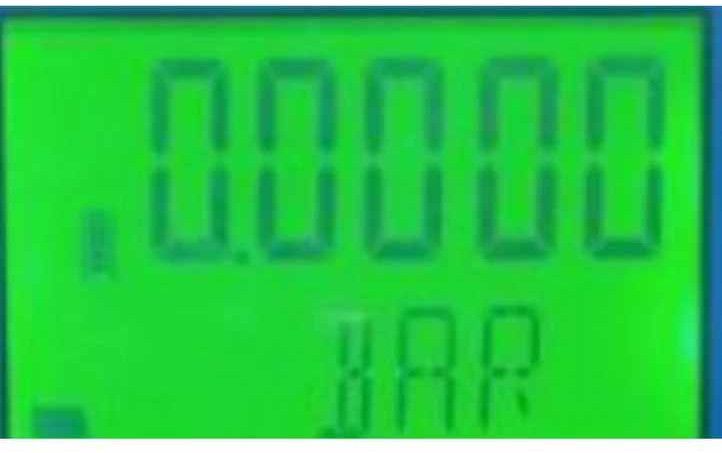

A digital pressure gauge is a precision instrument used to measure the pressure of gases or liquids within a system and display the measurement digitally. Unlike traditional analog pressure gauges, which use mechanical components (such as springs and dials), digital pressure gauges use electronic sensors and microprocessors to generate and process pressure readings.

Key Features and Components:

Pressure Sensor (Transducer): The heart of a digital pressure gauge is a pressure sensor, which detects changes in pressure. This sensor could be a strain gauge, capacitive, piezoelectric, or a resonant sensor, depending on the design and application. The sensor converts the mechanical pressure into an electrical signal.

Microprocessor/Display: The electrical signal from the pressure sensor is processed by a microprocessor. The microprocessor then converts this signal into a numerical value, which is displayed on a digital screen, usually an LCD or LED display.

Power Supply: Digital pressure gauges are powered by batteries, rechargeable batteries, or a direct connection to a power source, depending on the model. Some advanced models can also be powered via external sources like 4-20 mA or RS485 signals.

Units and Calibration: Digital pressure gauges can be calibrated for different pressure units, such as psi (pounds per square inch), bar, pascal (Pa), or kilopascal (kPa), allowing for flexibility in various applications. The calibration process ensures accurate readings based on the intended measurement range.



Additional Features:

Data Logging: Some digital pressure gauges are equipped with data logging capabilities, allowing them to store pressure readings over time for later analysis.

Product Description:

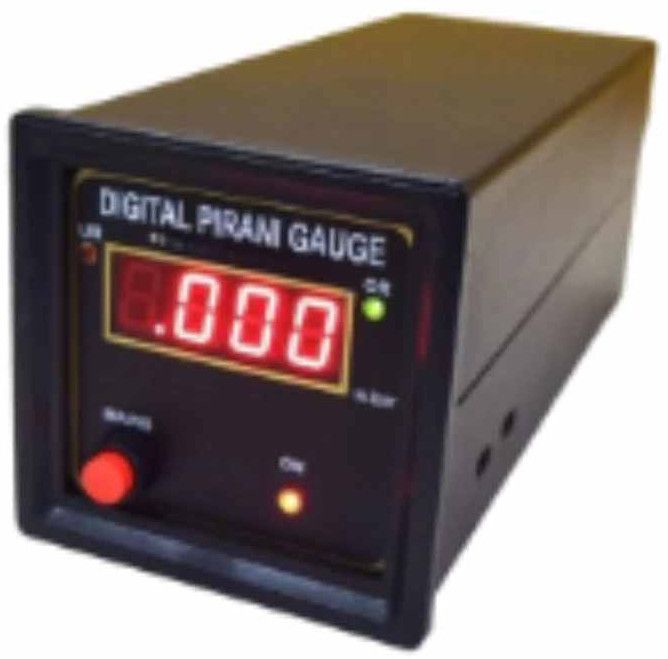

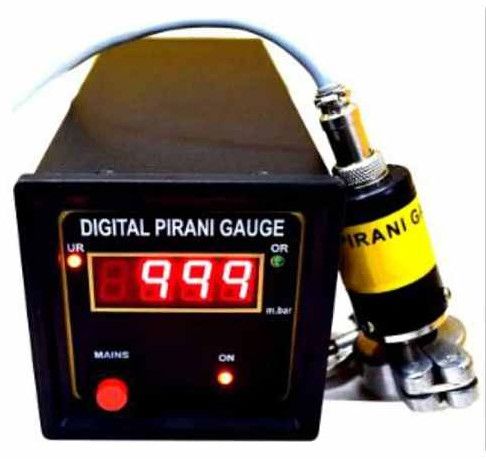

Digital Pirani Gauge and Indicators are recommended for the measurement of high vacuum in process applications with clear 4 Digit LED Display.

Specifications:

Pirani Range - 999 upto 0.001 mBar

Indicator - is panel mounting type with a Pirani Gauge Head (Sensor) which can be clamped onto the point of measurement using a KF Clamp fitting

Vacuum Measurement from 999 mBar ( Atmospheric) to 0.001 mBar (1 micron) & from 1 mBar to 0.001 mBar (1 micron) depending on the application

Display - is an intelligent 4 Digit 7 segment LED display with auto decimal resolution setting.

Principle Used - Thermal conductivity of gases

Digital Pirani Gauges come with a single gauge head or a dual gauge head enabling the use of one instrument to measure the vacuum of 2 points. Digital Pirani Gauge is a direct replacement for the conventional Analog Pirani Gauges & is mains operated on Single Phase, 230 V.A.C. supply. Also available are Digital Pirani Gauge with 2 Gauge Heads & Digital Pirani Gauge with Set Point Controller. The Digital High Pressure Pirani Gauge is available from range 999mBar to 0.001mBar.

Nunes Instruments , is  in the field of Instrumentation Sales Service & Repairswith 40 years of experience.  We provide service & repairs to your old high precision instruments and equipment.  We provide cost effective service & Repair to any brand, any make instruments  with service warranty. W hy not try once?



Instruments of Any Type, Any Make, Analog/Digital, Any Condition  Indian or  Imported

Laboratory Instrument, Test Equipment,

Scientific, Measuring, Precision Instrument,

Analytical, Bio Medical, Survey, Electrical,

Electronic Instruments ,Weather, Metrology.

Digital Vacuum Gauge can install or restart refrigerant or air conditioning equipment, evacuating is one of the most critical steps. It is nearly impervious to moisture and dirt to enter because the optical vacuum gauge is IP42 certified (water-resistant and dirt-proof). This Digital Vacuum Gauge is built to ensure measurements are fully accurate. It has all the measurement functions needed for evacuation coolant systems and heat pumps.



Features of  Digital Vacuum Gauge :

This Digital Vacuum Gauge Highly accurate and reliable measurement results

It has measurement data monitoring via Testo Smart Probes App

Measurement of the evaporation temperature of H2O

Extremely robust and water/dirt resistant (IP 42)

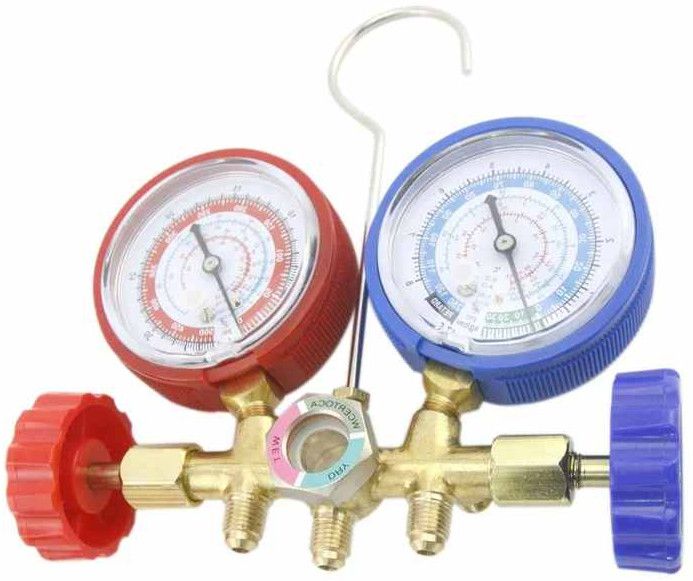

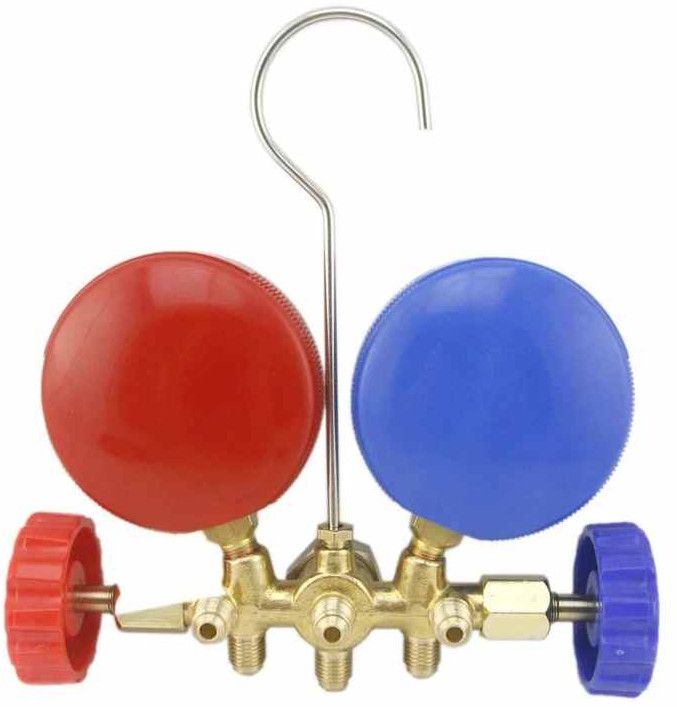

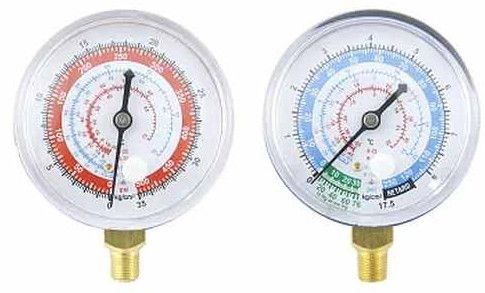

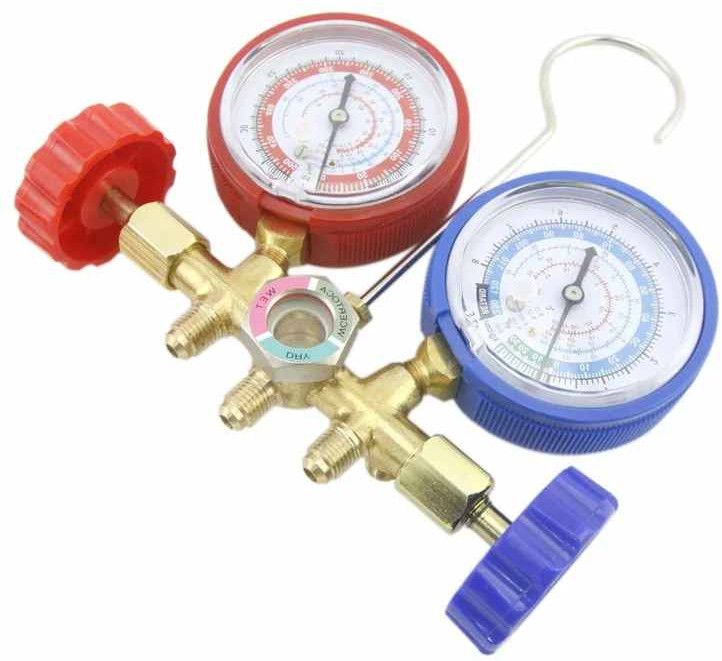

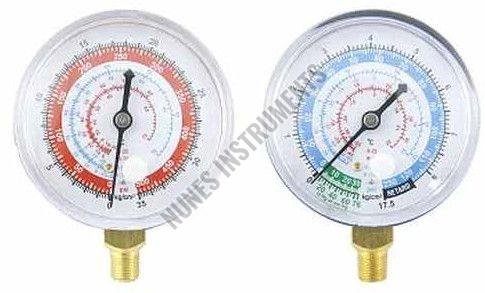

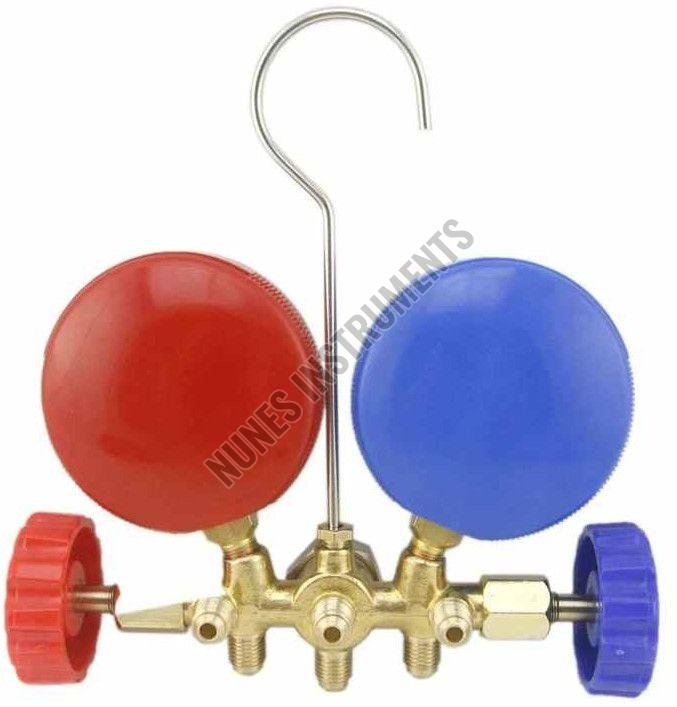

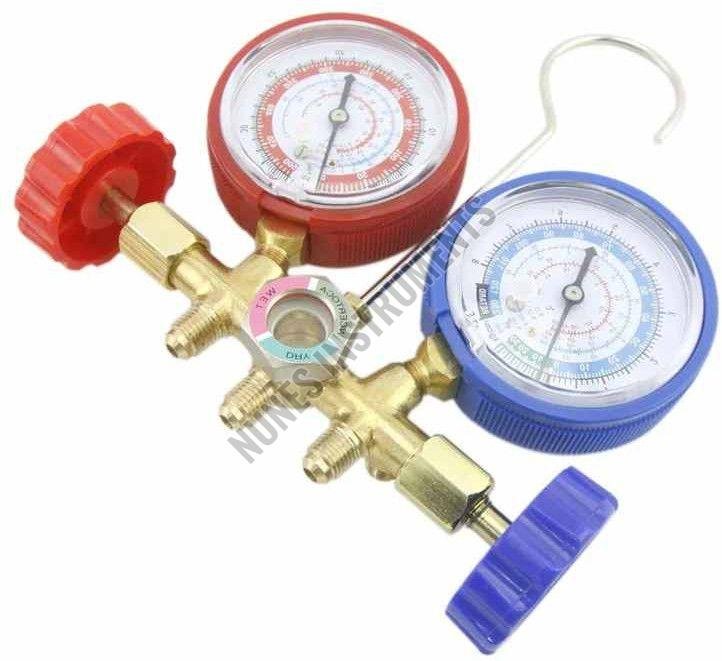

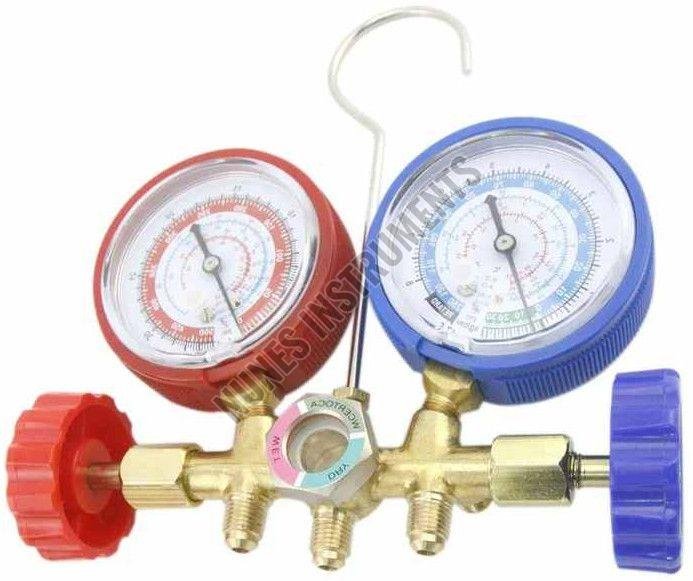

Analogue Manifold Gauge is used to read the pressure of various liquids and gases in a cooling system, as well as vacuum pressure when you are pressure testing or charging the device. There are a number of different ports on the gauge set, also known as a manifold, and the main difference in the types of manifolds is the number of ports that you have available to attach accessories to, as well as the pressure that the gauge set can withstand, which is important when working with different refrigerants. Value has two different sets of Gauges; the analogue and sigital types gauges. They cover almost all the CFC and HCFC refrigerants.



Nunes Instruments , is  in the field of Instrumentation Sales Service & Repairs with 40 years of experience.  We provide service & repairs to your old high precision instruments and equipment.  We provide cost effective service & Repair to any brand, any make instruments  with service warranty.

Instruments of Any Type, Any Make, Analog/Digital, Any Condition  Indian or Imported

Laboratory Instrument, Test Equipment, Scientific, Measuring, Precision Instrument, Analytical, Bio Medical, Survey, Electrical, Electronic Instruments ,Weather, Metrology.

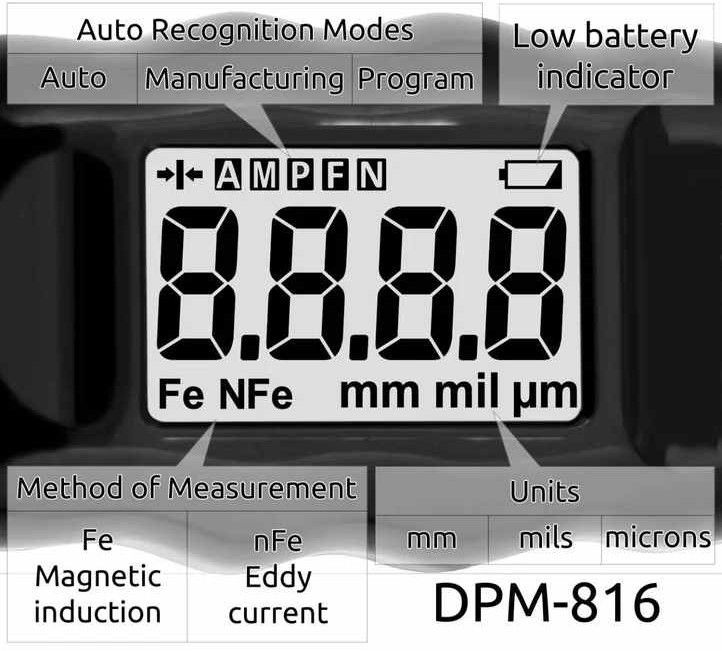

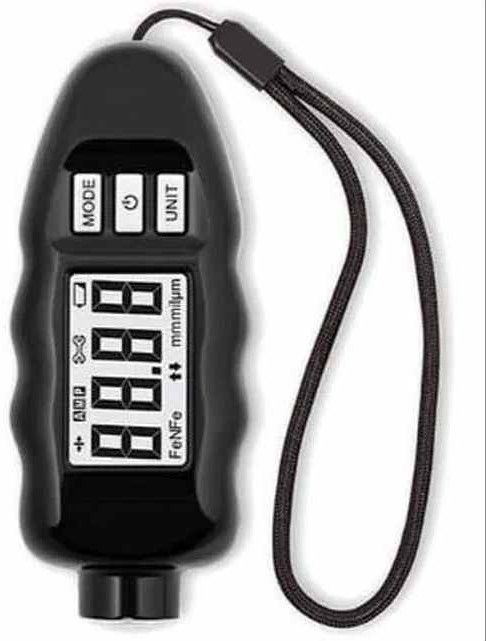

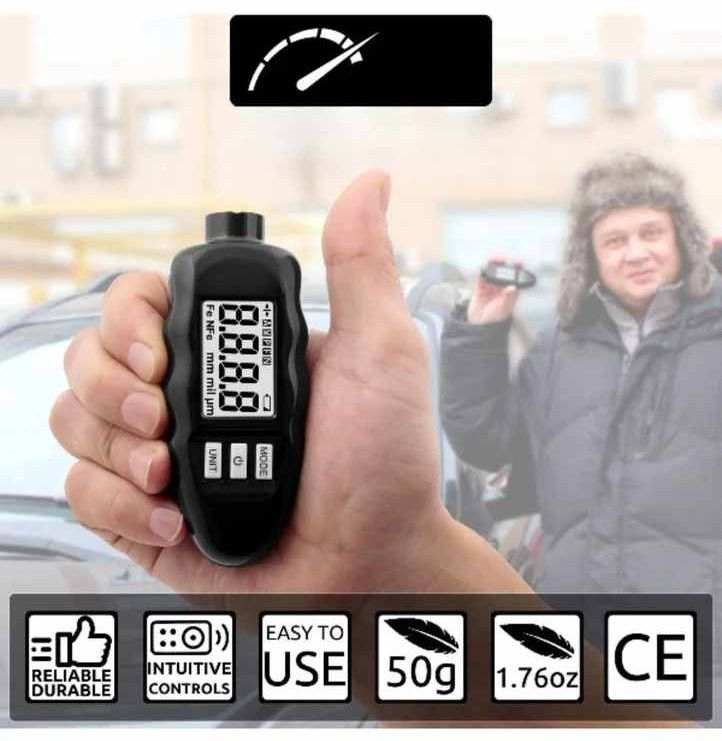

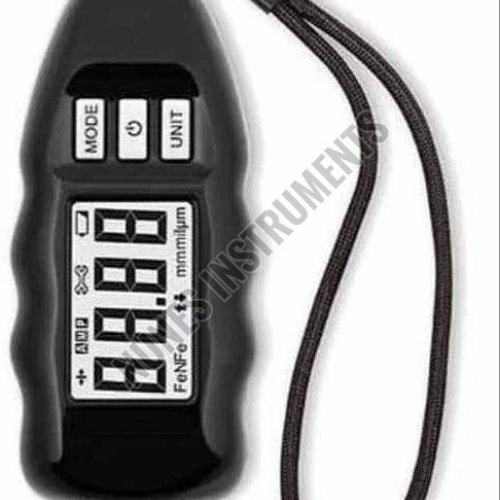

V-TECH Coating Thickness Gauge VT-DPM-816 Precision Probe Fe/NFe Paint Meter for Paint Check. Not suitable for checking Plating thickness from 1-10 microns Presenting our device for measuring coating thickness (any non-metallc coating, for example paint, spackling paste) applied on a metal base (steel, iron, galvanised steel, aluminium alloys, zinc, etc.)



THICKNESS GAUGE APPLICATIONS

The coating thickness gauge can be used for measuring paint thickness, determine the condition of the car body, in various manufacturing quality controls. Here are more sample use cases:



Buying a new or used car;

Dent repair on the car body without painting;

Checking the paint coat thickness during polishing;

Colouring of metal parts or the car body with control of coating thickness;

Car condition assessment for insurance companies and those specialising in car selection;

Control for applying fireproof and protective coatings.



ADVANTAGES

Accurate and stable measurements. Thickness measurement on ferrous and non-ferrous metal bases.

Thickness measurement range 0-3 mm (0-3000 mm).

Automatic determination of metal base (ferrous or non-ferrous).

Displays result in mm, mm, and thousandths of an inch (mil).

Thickness measurement on galvanised steel parts.

Allows for custom calibration for specific metals.

Fast user calibration using one or two points of reference.

5 modes of operation, for various usage conditions.

Backlit display for measuring thickness in poor lighting.

Automatic detection when the measurement starts.

Registered trademark and patent.



SPECIFICATIONS

Measurement range: 0-3000 m (0-3 mmm). Measurement precision: 1 mm / 0.01 mmm / 0.1 mmil.

Permissible error (0-699 mm): ± 1% + 1 m. Permissible error (700-3000 mm): ± 1% + 10 m.

Operating temperature (humidity not higher than 70%): from -25 to 40°C.

Power supplied by 1 AAA battery, 1.5 V (not included)

Measurement units: mm/mm/mil. Measurement duration: 0.5-1 sec.

Display size: 20×33 mmm.

Net weight (without battery): 50 g.

Warranty: 2 years.

Nunes Instruments , is  in the field of Instrumentation Sales Service & Repairs with 40 years of experience.  We provide service & repairs to your old high precision instruments and equipment.  We provide cost effective service & Repair to any brand, any make instruments  with service warranty. W hy not try once?



Instruments of Any Type, Any Make, Analog/Digital, Any Condition  Indian or  Imported

Laboratory Instrument, Test Equipment,

Scientific, Measuring, Precision Instrument,

Analytical, Bio Medical, Survey, Electrical,

Electronic Instruments ,Weather, Metrology.

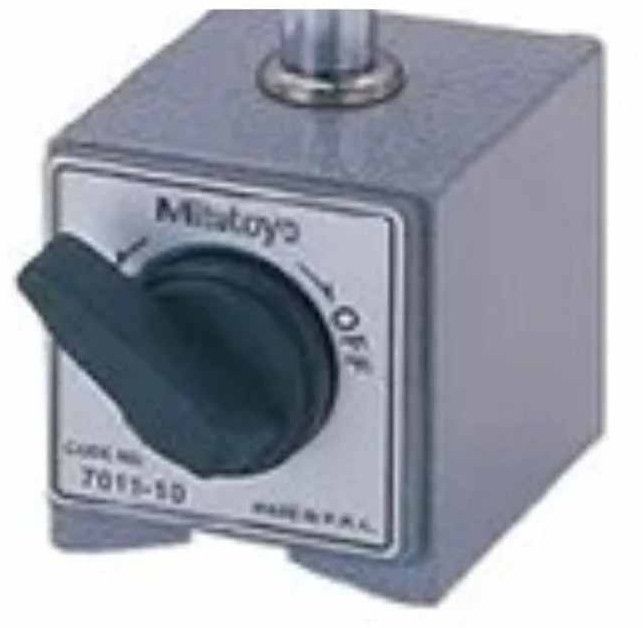

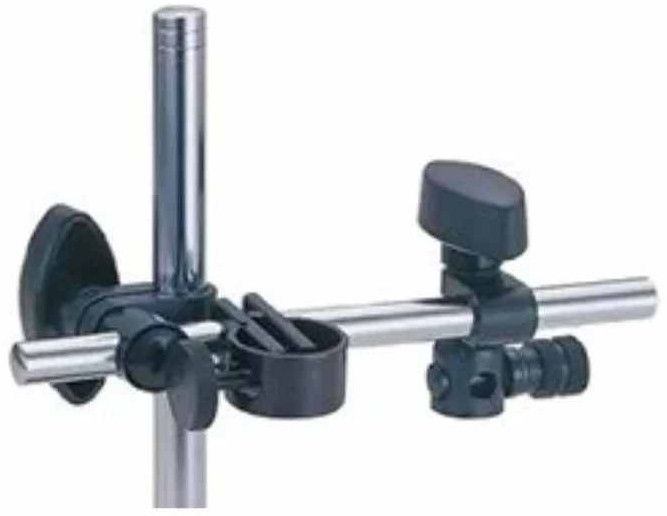

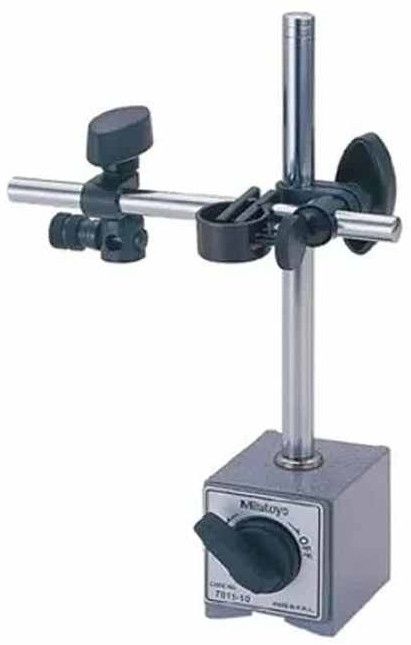

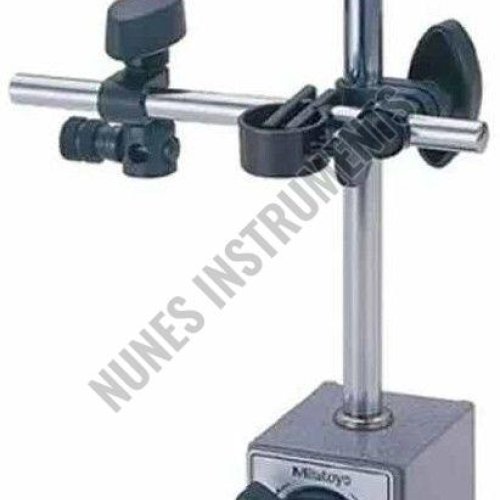

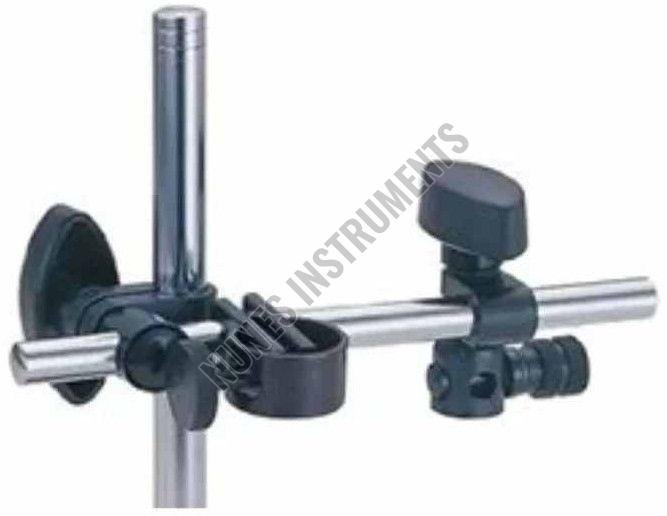

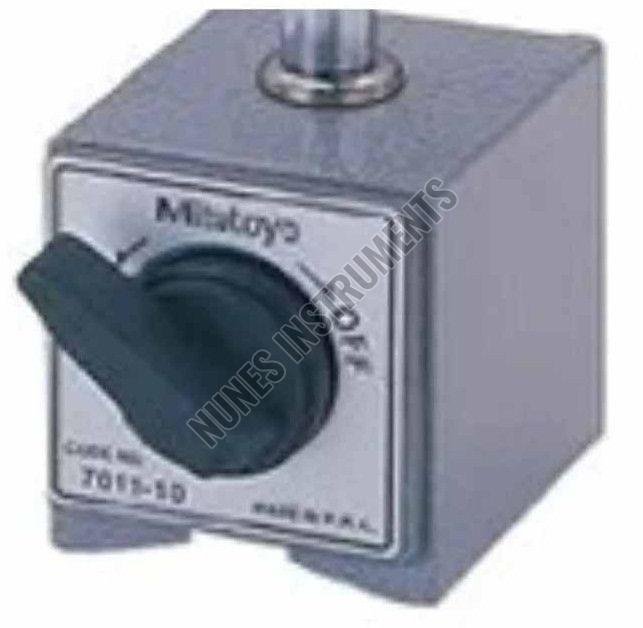

The Mitutoyo Magnetic Stand is a precision instrument used for holding measuring tools, such as dial indicators or probes, securely in place during measurements. The magnetic base provides strong adhesion to metal surfaces, offering stability and hands-free operation, making it ideal for high-precision applications in workshops and laboratories.

Key Features:

Strong Magnetic Base for secure attachment to metal surfaces.

Adjustable Arm allows for flexible positioning of measuring tools.

Durable Construction made from high-quality materials for long-lasting performance.

Easy-to-Operate with a simple on/off magnetic switch.

Compact Design suitable for use in tight spaces and on small workpieces.

Precision Holding for accurate measurements in machining and quality control.

Versatile Compatibility works with a wide range of measuring instruments like dial indicators and probes.

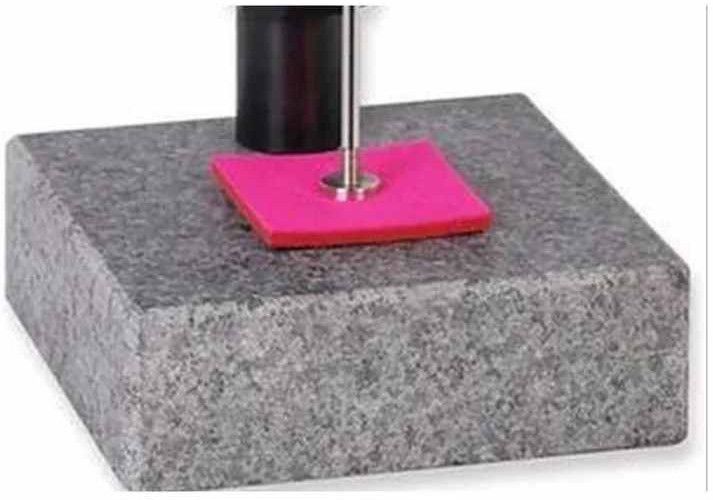

Product Description

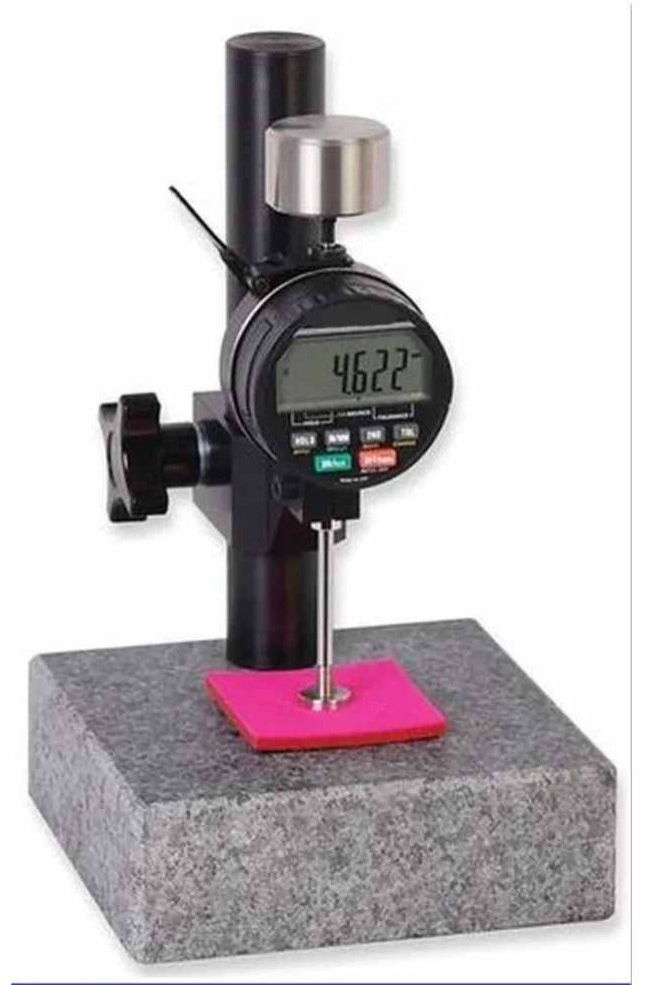

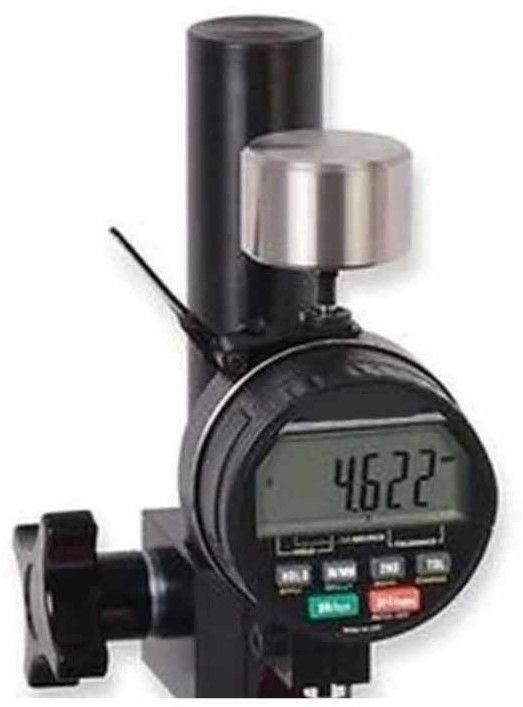

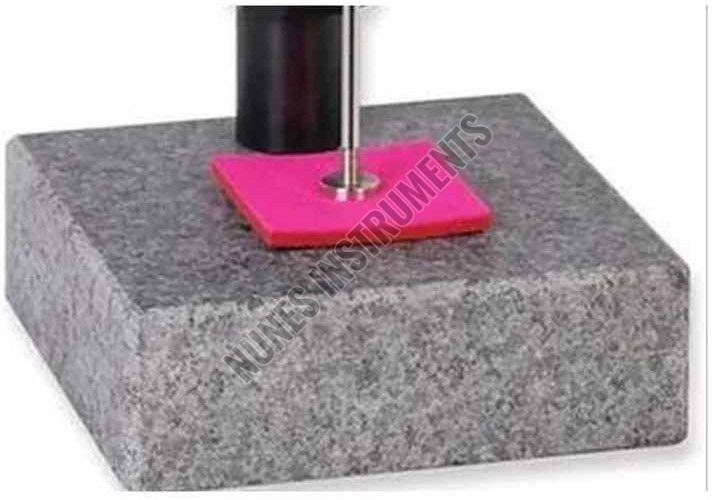

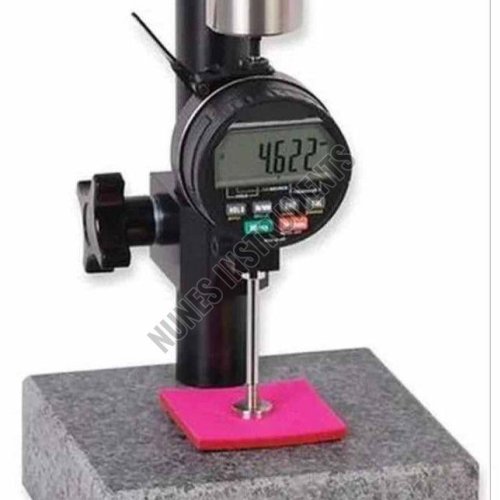

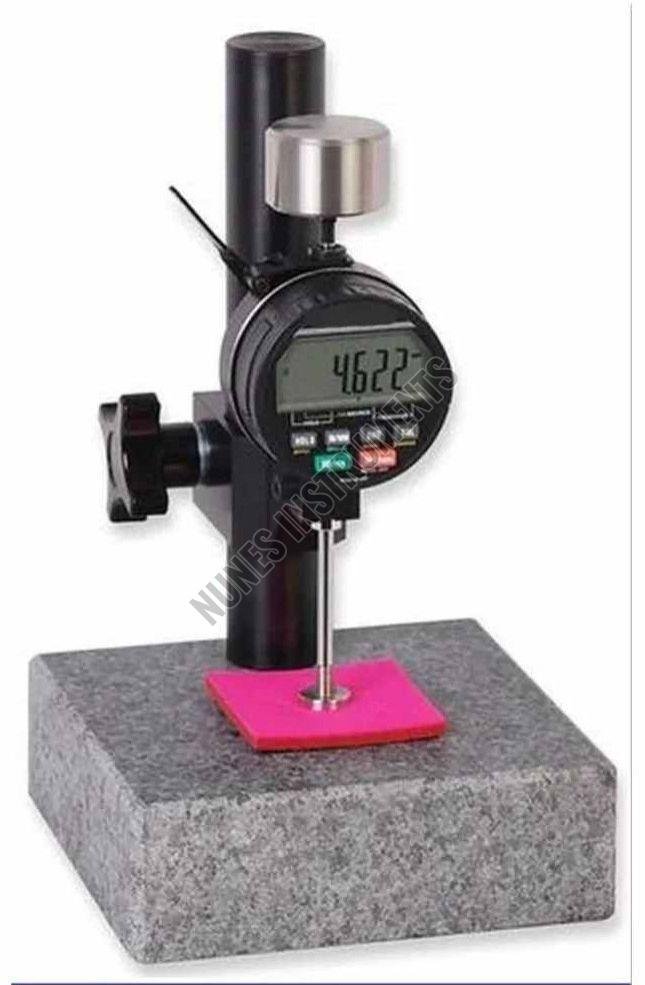

We are dealing in Soft Material Thickness Gauge. Below is the mentioned technical specification of the product.



Features:

Precisions:0.01mm

Press foot diameter: 28.7mm(1.13in)

Base diameter: 150mm

Usage: Textile Testing Instrument



Nunes Instruments , is  in the field of Instrumentation Sales Service & Repairs with 40 years of experience.  We provide service & repairs to your old high precision instruments and equipment.  We provide cost effective service & Repair to any brand, any make instruments  with service warranty. W hy not try once?



Instruments of Any Type, Any Make, Analog/Digital, Any Condition  Indian or  Imported

Laboratory Instrument, Test Equipment,

Scientific, Measuring, Precision Instrument,

Analytical, Bio Medical, Survey, Electrical,

Electronic Instruments ,Weather, Metrology.

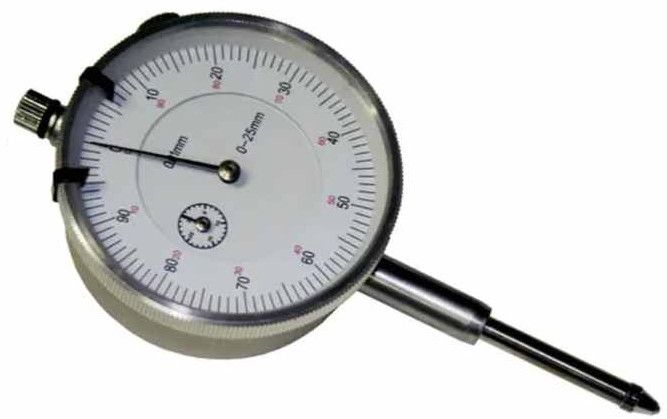

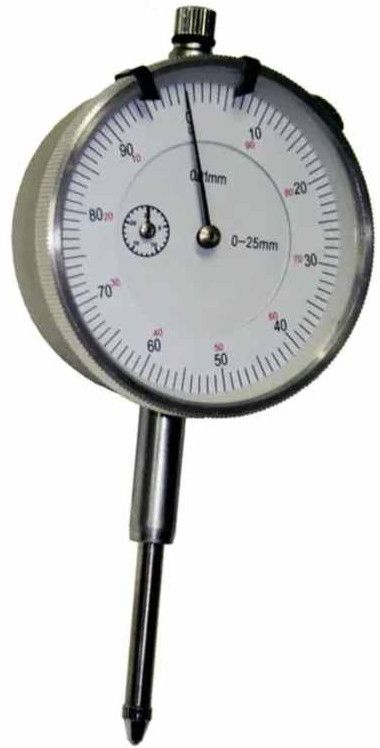

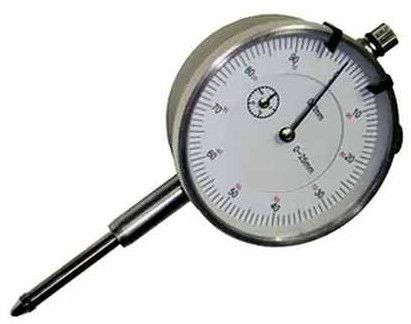

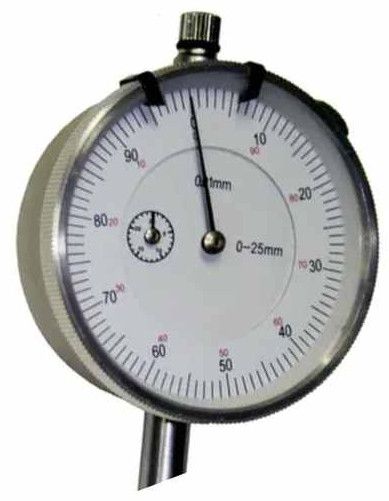

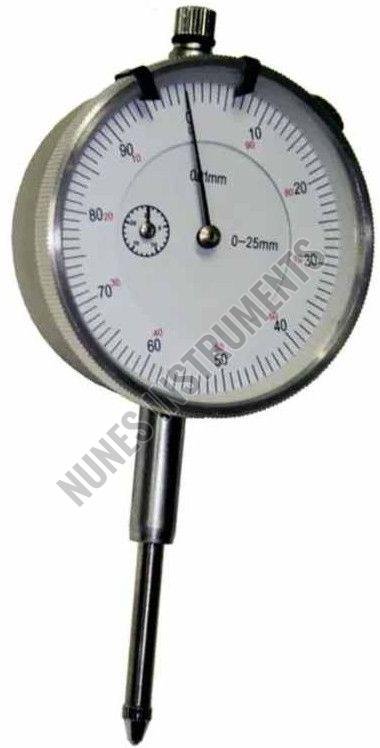

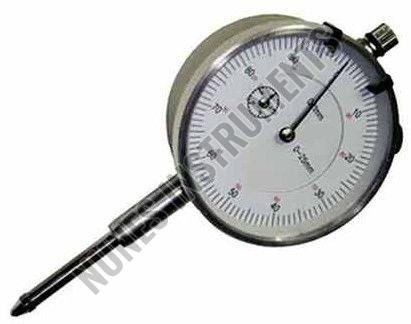

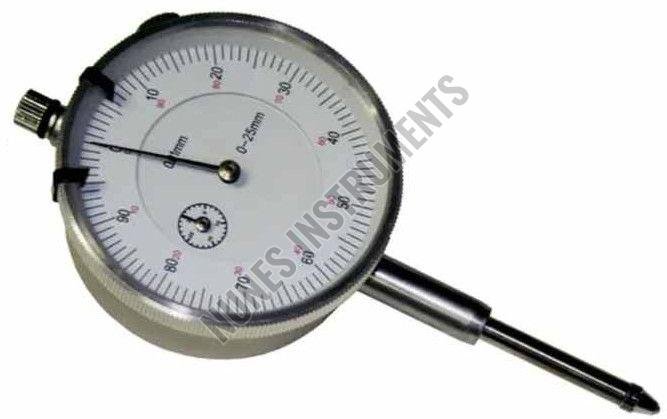

A Dial Gauge, also known as a dial indicator, is a precision instrument used to measure small linear distances and deviations in mechanical and industrial applications. It is widely used in quality control, machining, tool setup, and alignment tasks. The device features a circular dial with a needle pointer that moves in response to small displacements, providing highly accurate and repeatable measurements.

Key Features:

High Accuracy & Precision – Ideal for measuring tolerances, surface flatness, and alignment with fine resolution.

Clear Analog Display – Large, easy-to-read dial face with a smoothly moving needle for quick interpretation.

Robust Construction – Built with hardened stainless steel or alloy materials for durability and long life.

Measuring Range Options – Available in various ranges and resolutions to suit different measurement needs.

Versatile Applications – Suitable for use in machining, automotive, tool setup, and inspection tasks.

Shock-Resistant Mechanism – Some models feature anti-shock technology to withstand workshop handling and vibrations.

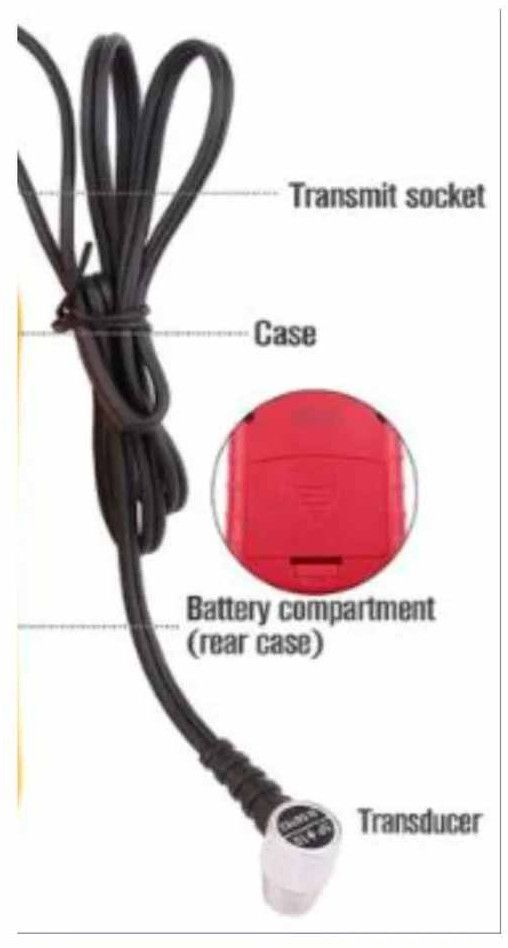

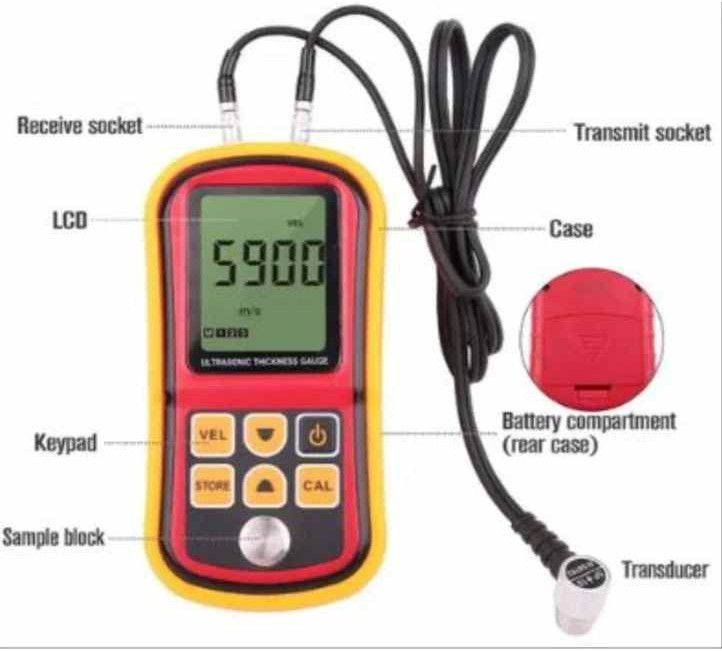

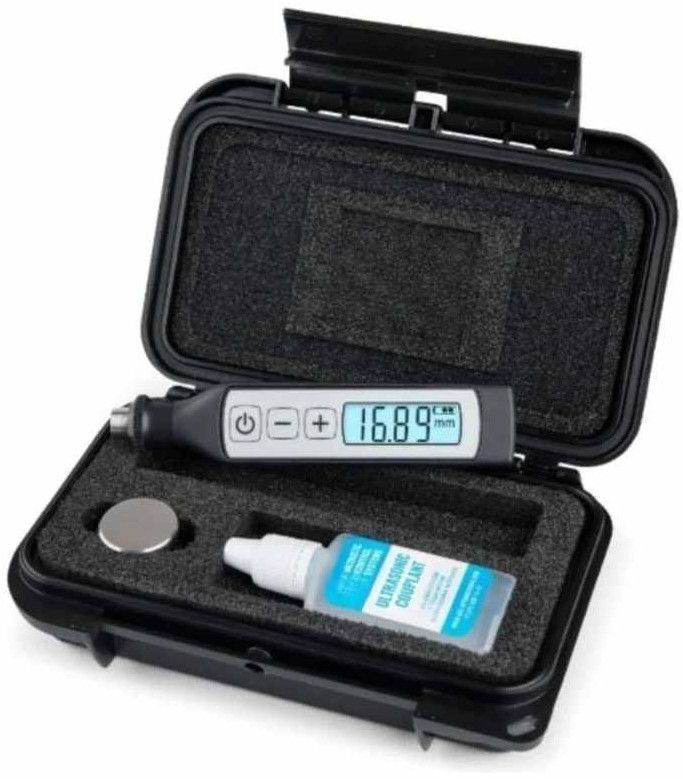

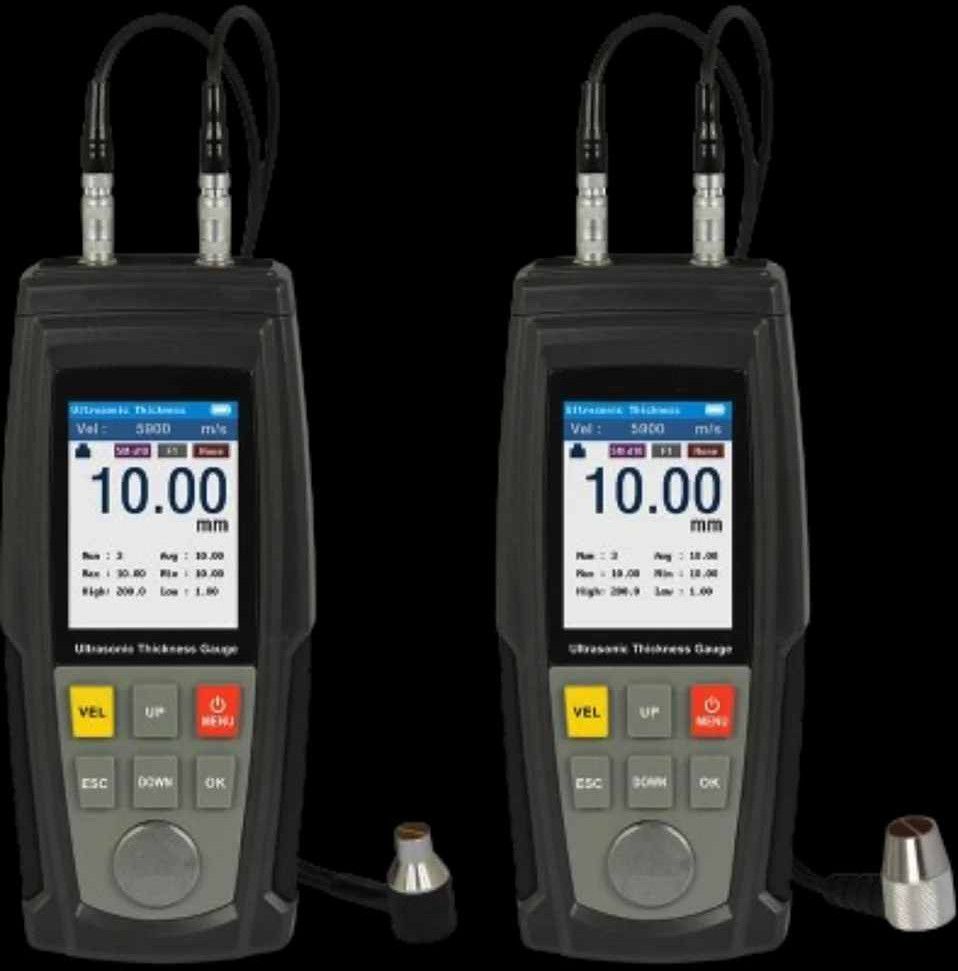

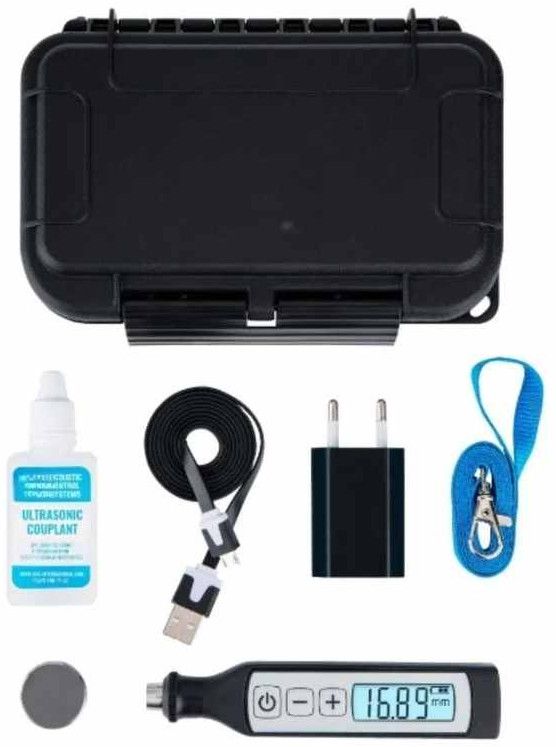

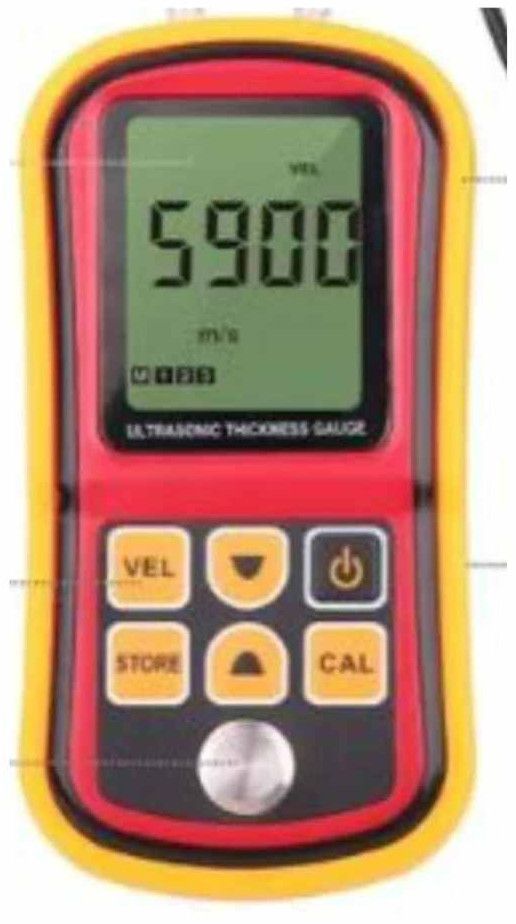

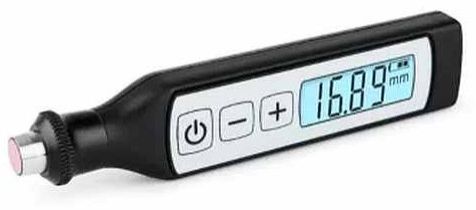

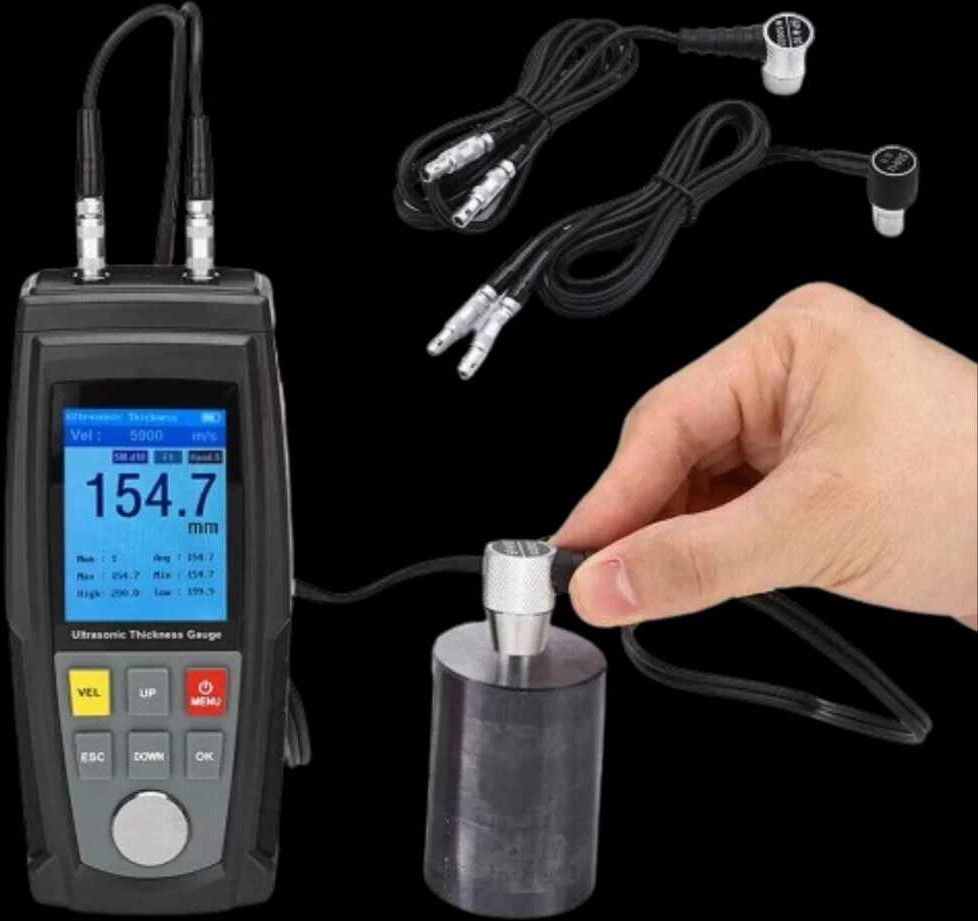

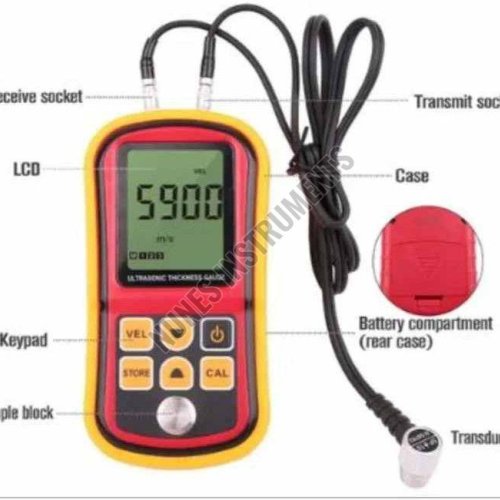

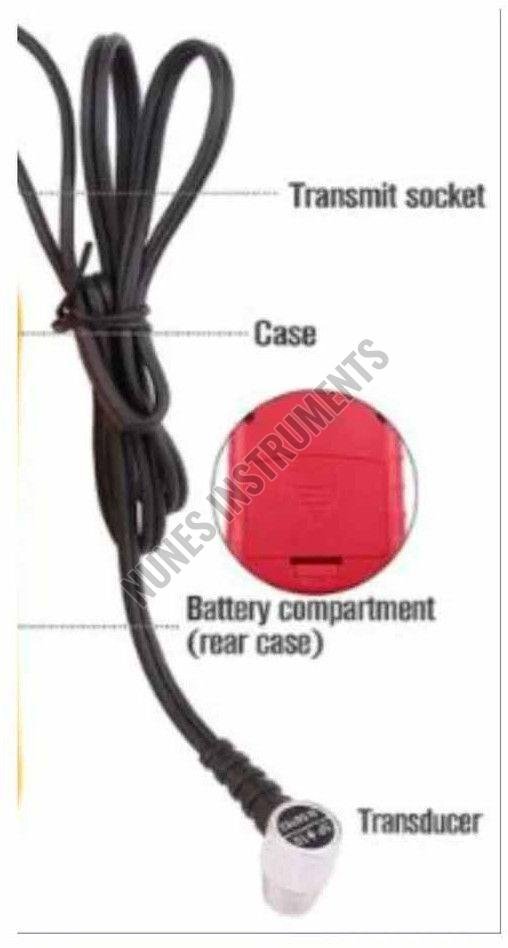

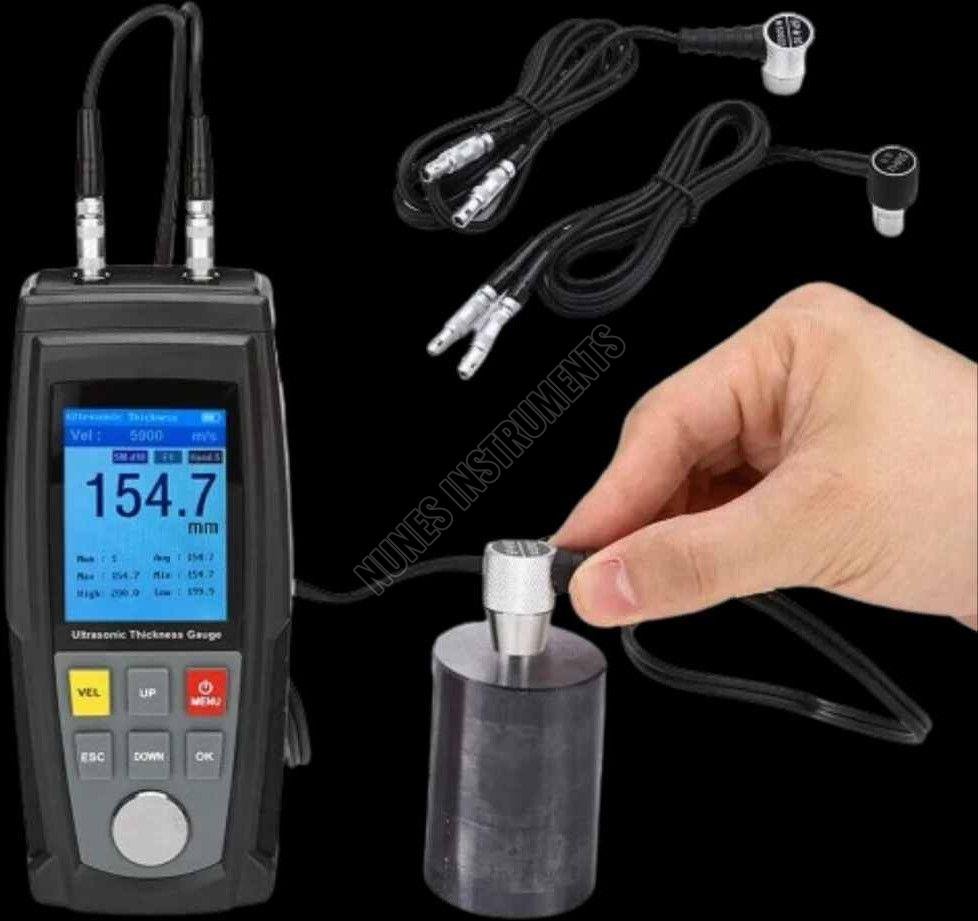

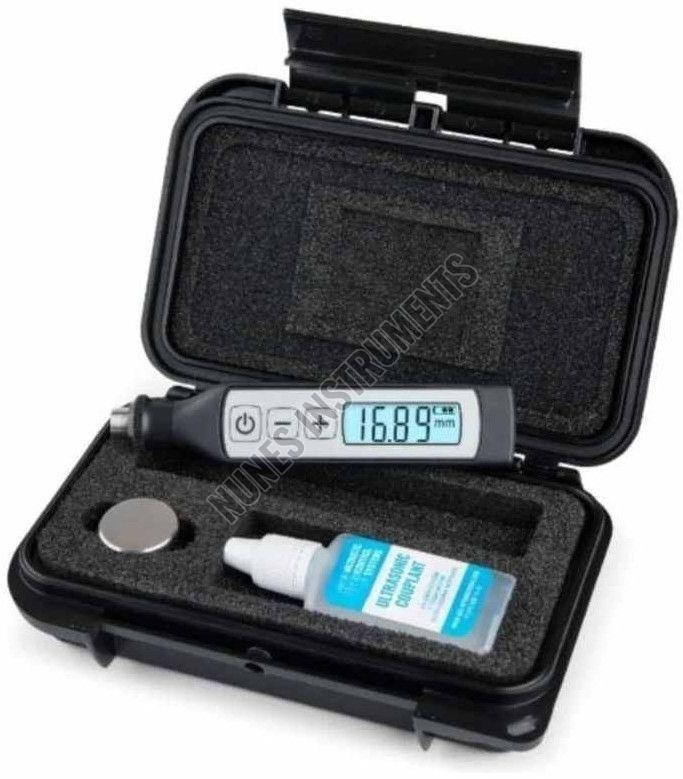

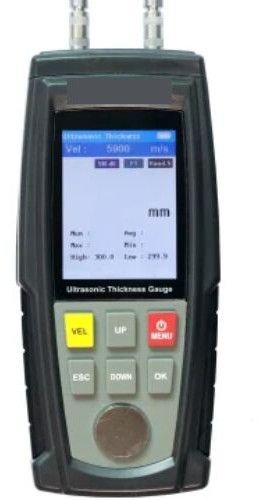

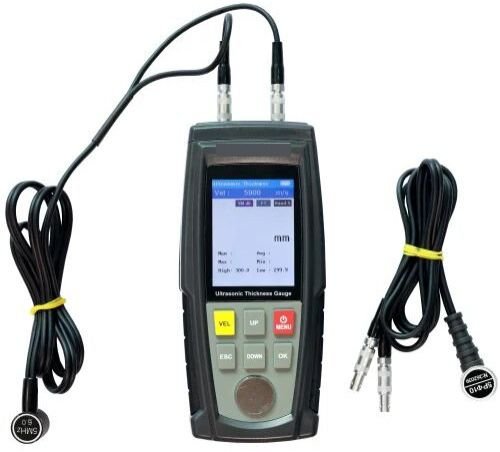

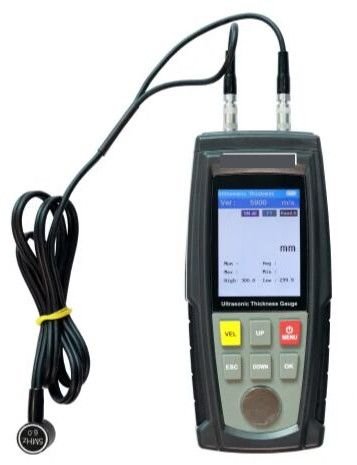

We offer the V-Tech Ultrasonic Sensor Thickness Gauge, model Vt8785, designed for industrial applications with a measuring range of 1 to 200 mm. This device features a 4-digit LCD display, 0.5% accuracy, and a resolution of 0.1 mm. Powered by 4 x 1.5 V AA alkaline batteries, it operates in a temperature range of 0 to 50 degrees Celsius. The sound velocity range is 500 to 9000 m/s, ensuring precise measurements. Ideal for exporters, suppliers, and traders seeking reliable thickness gauging solutions.

It is a compact size ultrasonic thickness gauge with all key features of an up-to-date thickness gauge.

It has a built-in double-crystale transducer with working frequency of 10 MHZ.

Pocket size and light weight

Built-in NiMh accumulator.

Measure thickness of pipe walls, boilers, vessels, ship, shells and other ferrous and nonferrous metals with surface roughness of up to Rz160 and minimum curvature radius of 10 mm.

Nunes Instruments , is  in the field of Instrumentation Sales Service & Repairs with 40 years of experience.  We provide service & repairs to your old high precision instruments and equipment.  We provide cost effective service & Repair to any brand, any make instruments  with service warranty. W hy not try once?

Instruments of Any Type, Any Make, Analog/Digital, Any Condition  Indian or  Imported

Laboratory Instrument, Test Equipment,

Scientific, Measuring, Precision Instrument,

Analytical, Bio Medical, Survey, Electrical,

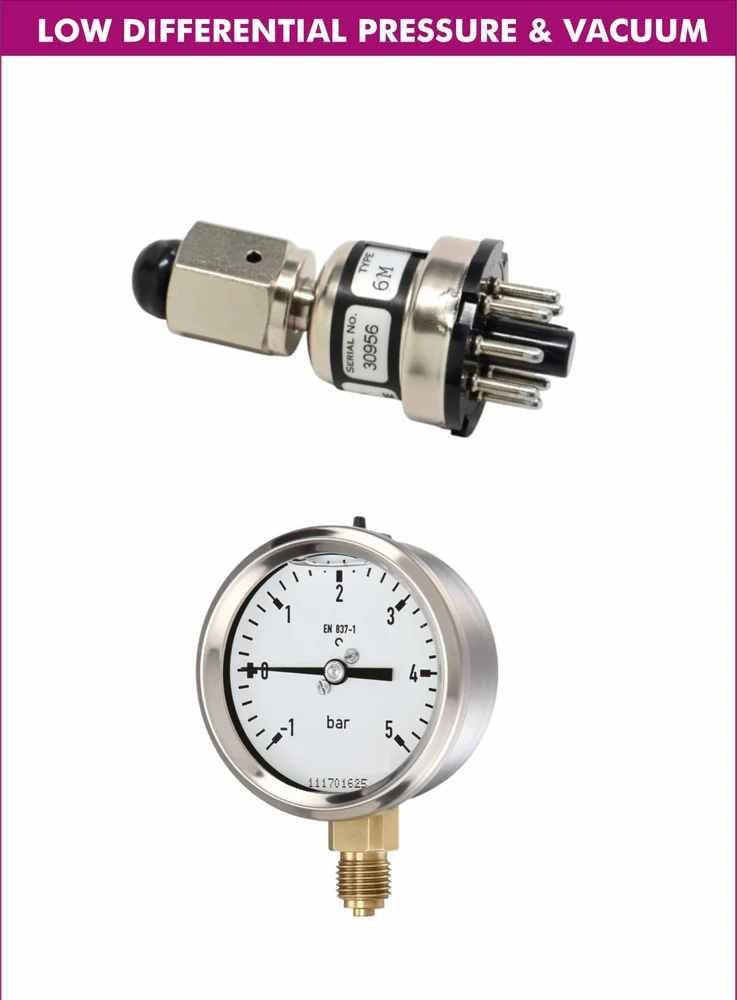

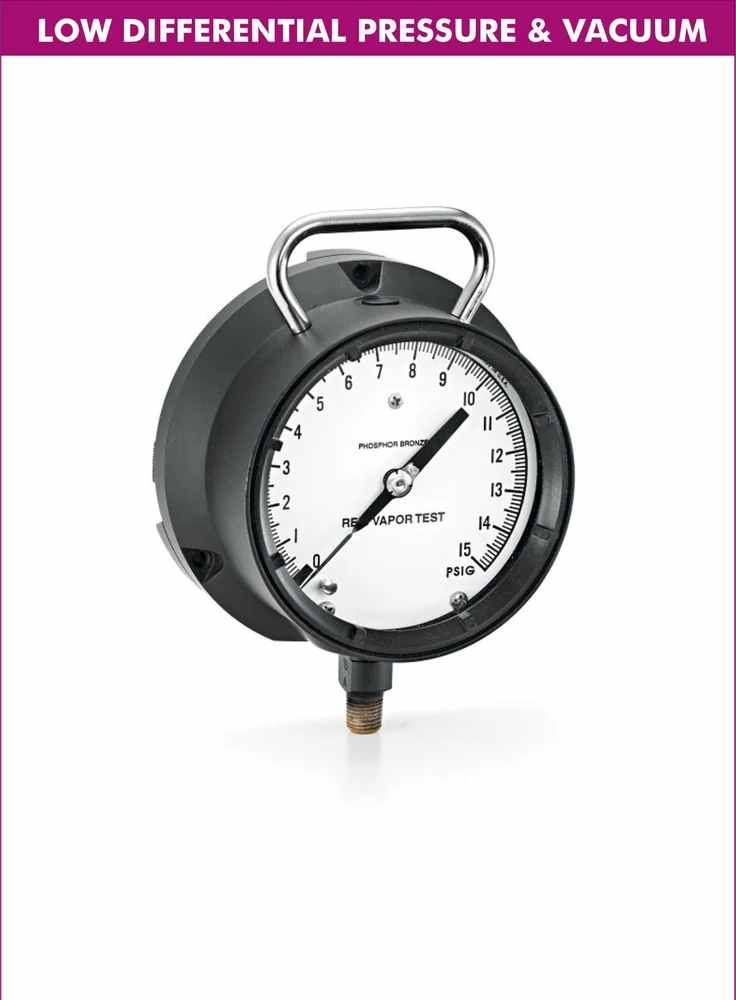

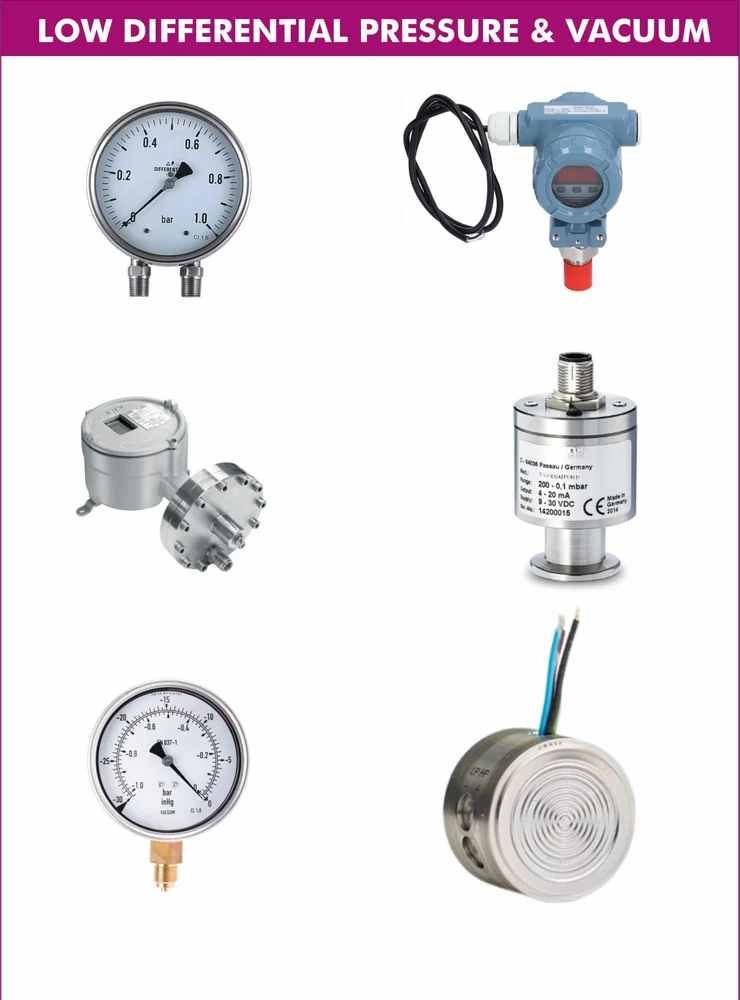

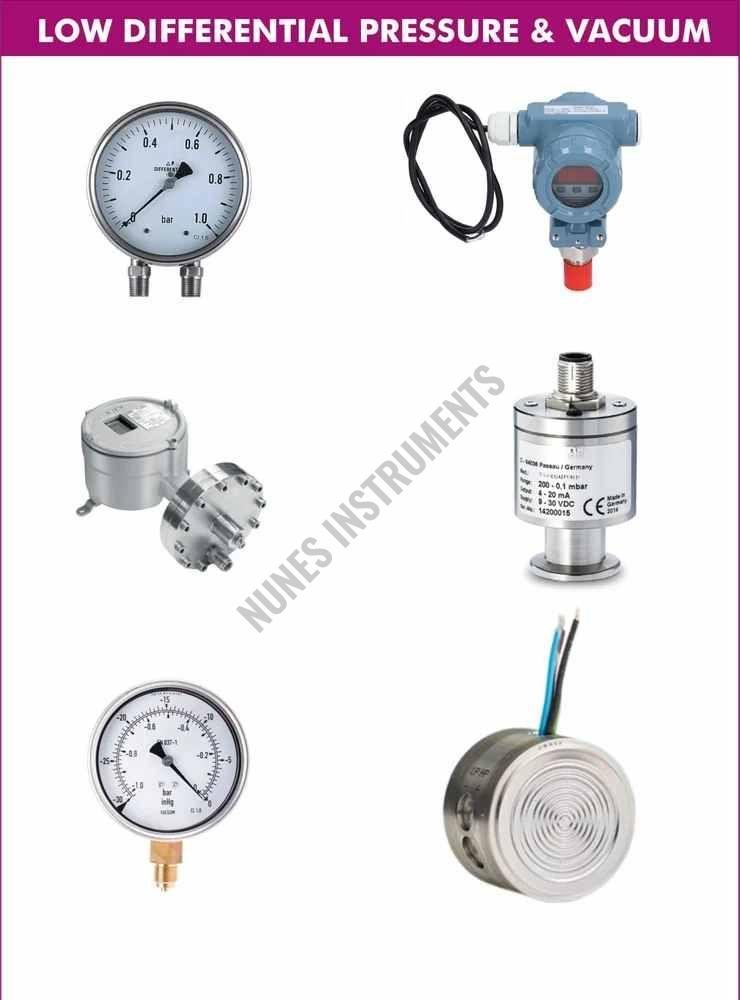

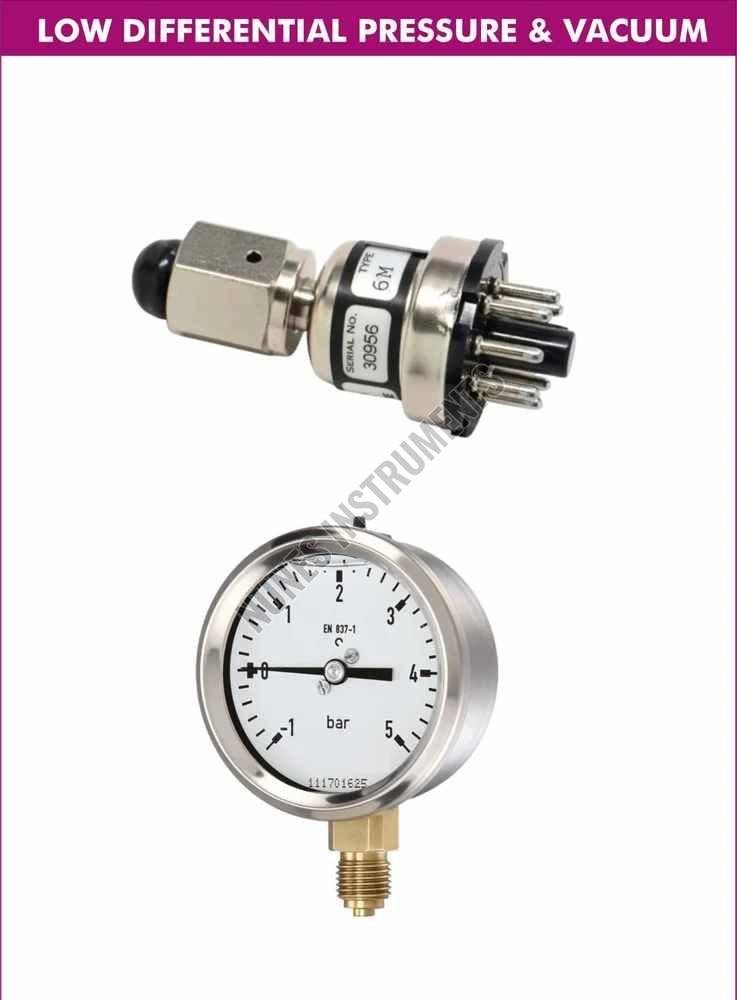

We offer V Tech Low Differential Pressure Vacuum Sensors, a top-quality Pressure and Vacuum Transmitter made of stainless steel. With a pressure range of 0-100 Psi and an accuracy of ±0.5% of full scale, this sensor provides reliable performance. The output of 4-20 MA and power supply of 12-36 VDC make it suitable for industrial applications. Backed by a 1-year limited warranty, this sensor comes in a box packaging. Ideal for exporters, suppliers, and traders looking for a dependable sensor solution.

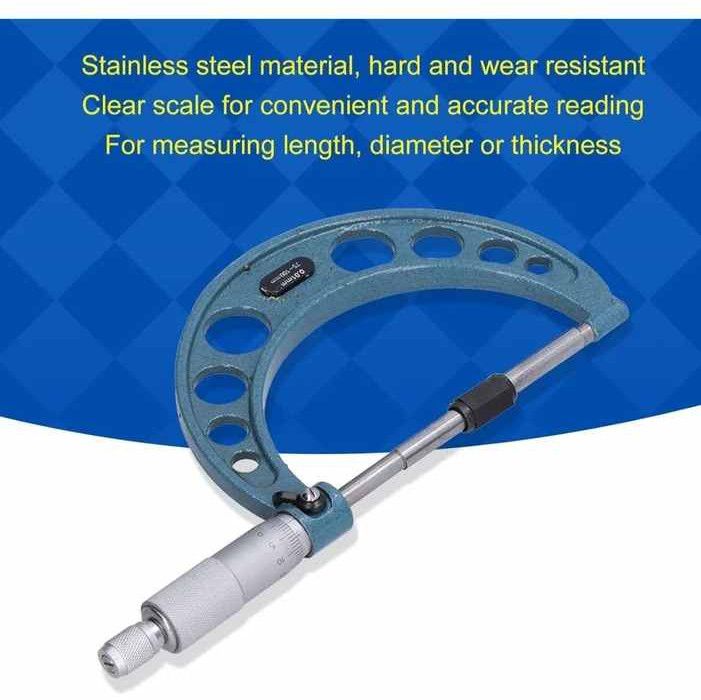

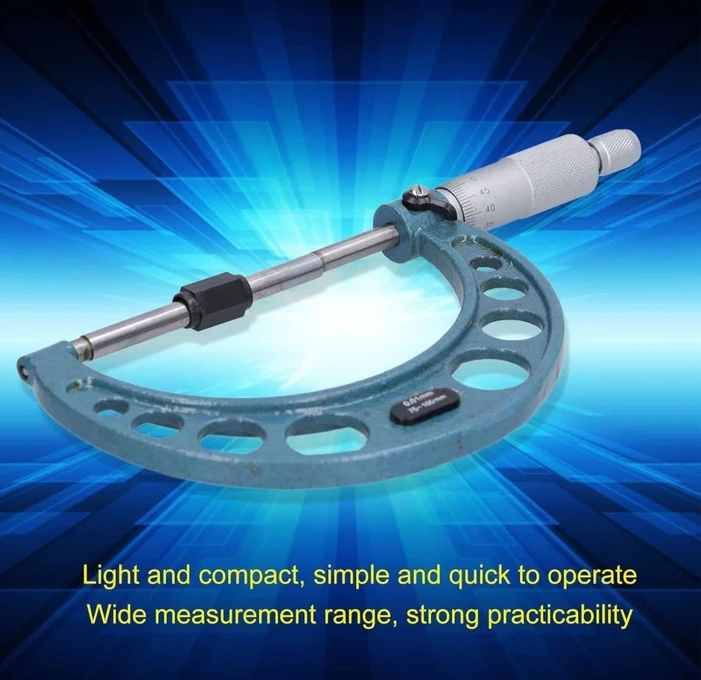

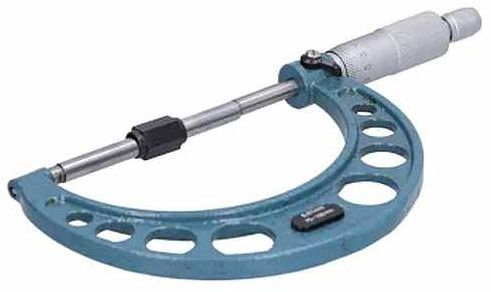

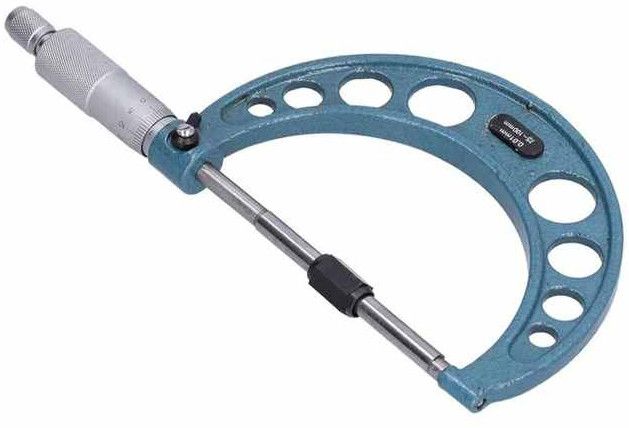

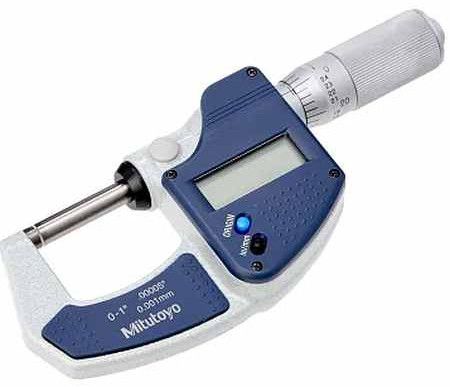

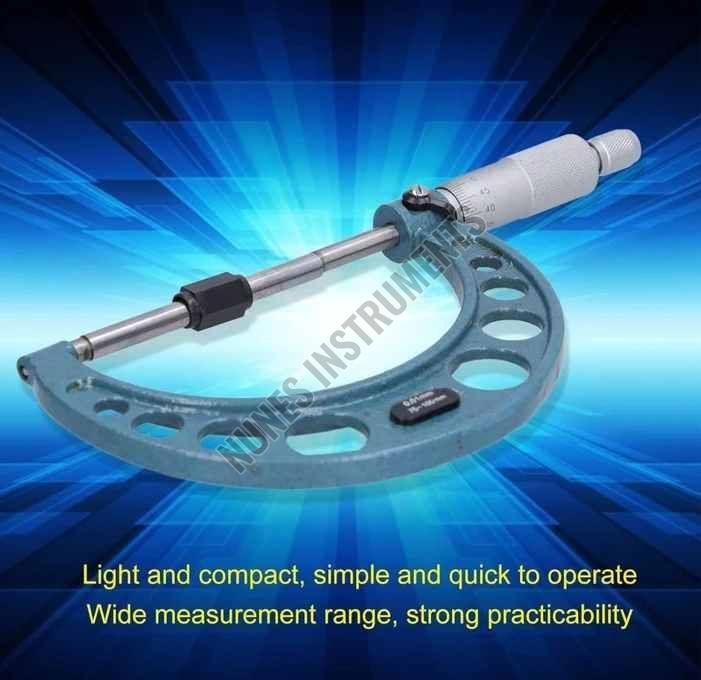

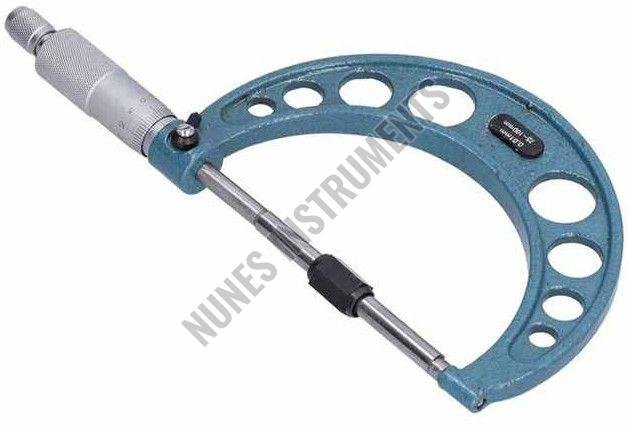

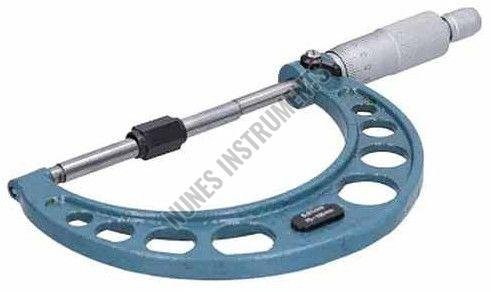

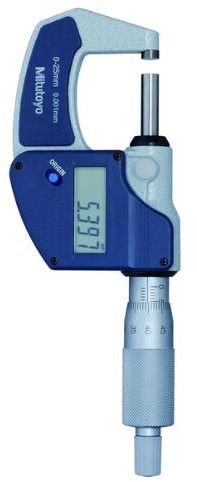

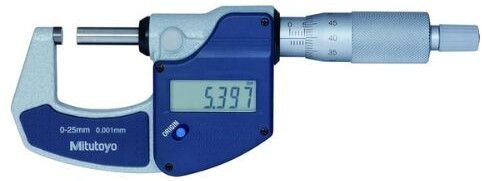

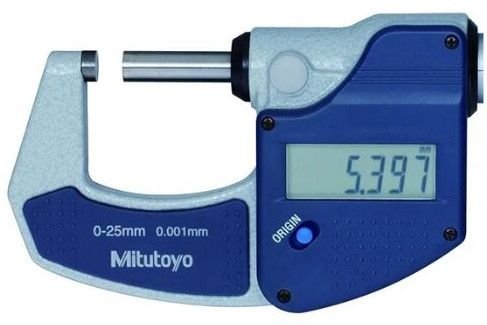

The Adjustable Micrometer is a precision measuring tool designed to measure the thickness or diameter of small objects with exceptional accuracy. It features an adjustable spindle that allows for the measurement of various sizes, making it highly versatile. Ideal for use in mechanical, manufacturing, and engineering applications.



Key Features:

High Accuracy with precise measurements typically to 0.001 mm or 0.0001 inches.

Adjustable Spindle for measuring a wide range of sizes.

Solid, Durable Construction for long-term reliability and performance.

Clear, Easy-to-Read Scale for accurate measurement interpretation.

Fine Adjustment Mechanism for precise calibration and measurements.

Versatile Use in industries like engineering, manufacturing, and quality control.

Smooth, Ergonomic Grip for easy handling and operation

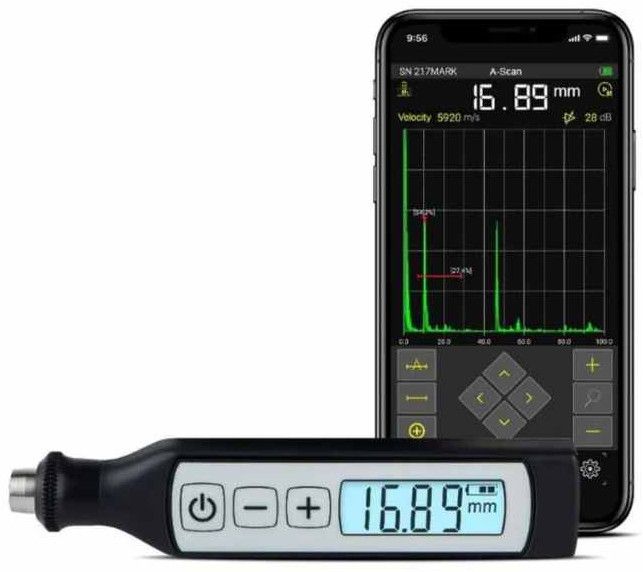

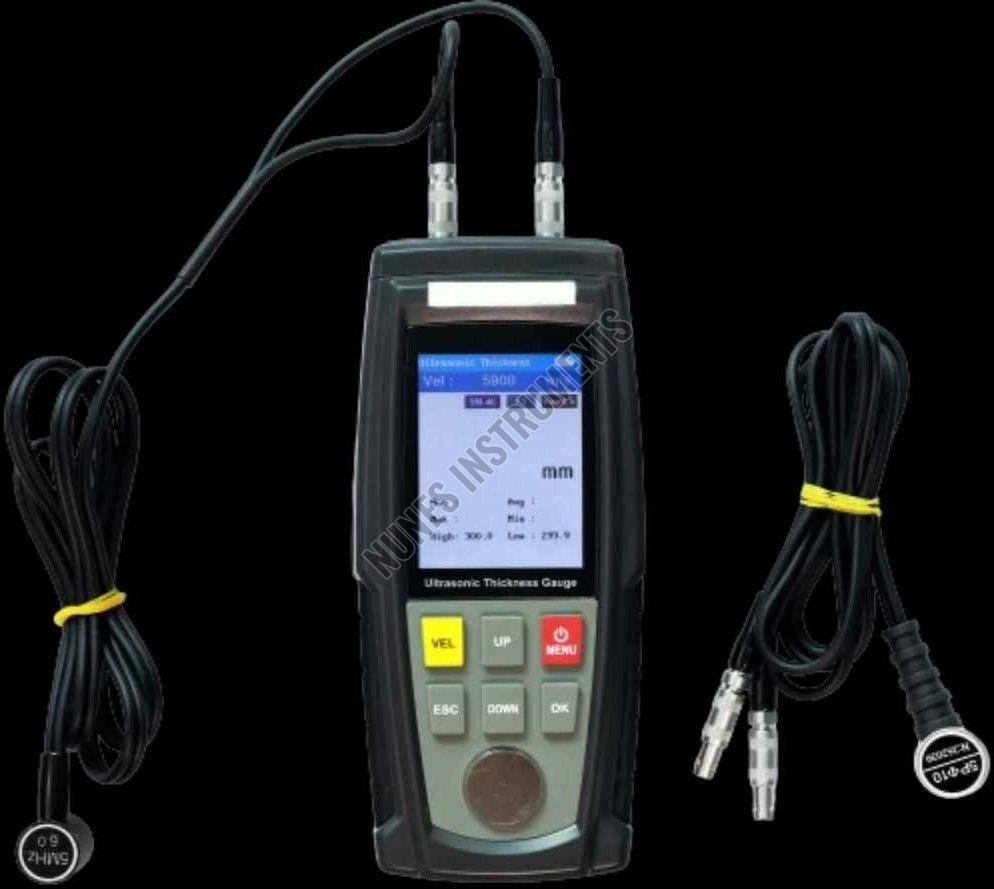

This instrument is capable of accurate measurement for different materials or parts in industrial production, as well as monitoring pipelines and pressure vessels of production equipment, and corrosion degree of various parts in use.
