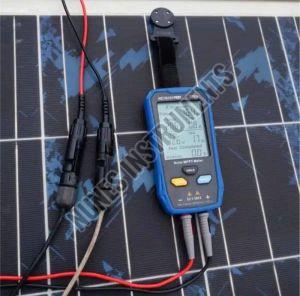

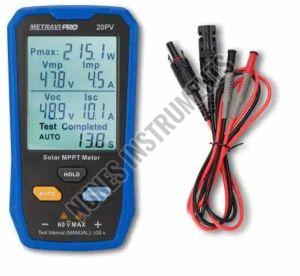

Metravi PRO Solar Mppt Meter

The V- TECH Pro 20PV Solar MPPT Meter can effectively identify any abnormalities in solar panels by testing their Maximum Power, Peak Power Voltage, Peak Power Current, Open Circuit Voltage, and Short Circuit Current.

Featuring a large display and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously.

The V- TECH Pro 20PV Solar MPPT Meter’s portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for Photovoltaic and Solar Panel manufacturers, installers, and end users.

Features:

Maximum Power Test (Pmax): 5～800W

Peak Power Voltage (Vmp): 12～ 60V

Peak Power Current (Imp): 0～35A

Open Circuit Voltage (Voc): 12～60V

Short Circuit Current (Isc): 0～35A

Large screen and multiple result display: A single measurement that displays all essential test values can significantly enhance work efficiency.

No batteries needed, powered by the solar panel: There is no requirement for batteries as the measurement can be effortlessly performed for extended periods.

Equipped with MC4 test lead: With the MC4 connector already included, there is no need for additional solar panel connectors. This enables quick and efficient measurements to be performed effortlessly.

Portable and convenient: With its portable and lightweight design, this meter provides operators with convenience and ease of use, making it an incredibly versatile and indispensable tool for a wide range of tasks.

Certifications: CE, cETLus, RoHS
