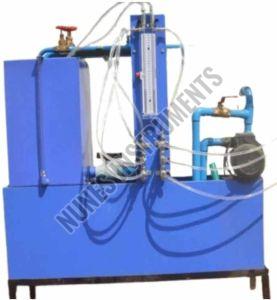

Pipe Friction Apparatus

The Pipe Friction Apparatus is an experimental setup used to study the effects of friction in pipe flow. It helps demonstrate the relationship between pressure loss, flow rate, and the frictional resistance encountered by fluid as it flows through a pipe. The apparatus typically includes a long pipe, a fluid reservoir, a pump, and pressure measuring devices placed at different points along the pipe. By adjusting flow rates and measuring pressure drops, users can analyze how factors like pipe diameter, length, fluid velocity, and roughness affect the frictional losses in the pipe.

This apparatus is commonly used in fluid mechanics and hydraulics labs to study Darcy’s law, head loss due to friction, and other key principles of fluid flow in pipes.

Key Features:

Pressure Drop Measurement: Measures the pressure drop across various lengths of pipe to quantify frictional losses at different flow rates.

Adjustable Flow Conditions: Allows users to vary the flow rate and observe the effect on pressure loss and frictional resistance.

Educational Tool: Ideal for demonstrating concepts like Darcy’s law, head loss, and the factors influencing pipe friction in engineering courses.

Flow and Pressure Measurement: Includes pressure gauges and flow meters to accurately monitor pressure differences and flow rates along the pipe.
