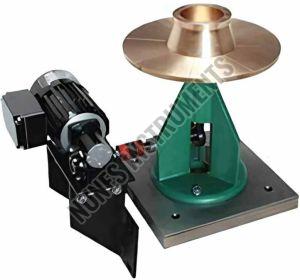

V Tech Motorized Flow Table

The Flow Table is used to determine the flow of hydraulic cement, mortars and cement pastes. A test specimen is molded on the flow table to a specified volume and shape. Then, with the mold removed, leaving the test specimen on the table. The flow table is dropped and raised (via a hand crank or optional motor) a specified number of cycles, after which the flow (or increase in average diameter of the specimen) is measured. Motorized flow table with 10" (254mm) dia. cast-bronze table/platen and automatic digital counter. Motor stops automatically once a pre-set number of drops is achieved. Includes heavy-duty table/platen assembly, standard H-3622 cast bronze, 2.75" top dia. x 2" high x 4" bottom dia. cone mold, motor, and H-3614B counter. Designed to be mounted to concrete mounting block.

Order H-3624F, pedestal form and easily create your own mounting block for the flow table. Applications include: compression strength and air content tests of cement mortar; flow tests of hydraulic cement mortars; consistency tests of magnesium oxychloride cement; flexural strength test for bond strength or mortar to masonry units
