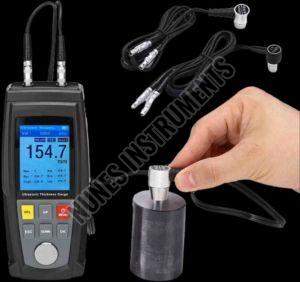

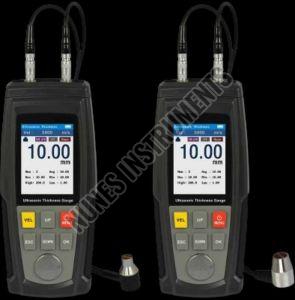

VT-130A Handheld Ultrasonic Thickness Gauge

The VT-130A Handheld Ultrasonic Thickness Gauge is a portable, high-precision non-destructive testing (NDT) instrument designed to accurately measure the thickness of metallic and non-metallic materials from a single accessible surface. Utilizing advanced ultrasonic pulse-echo technology, it provides fast and reliable measurements without damaging the test material. The gauge features a backlit LCD display, onboard memory for 500 readings, adjustable sound velocity for different materials, and a compact ergonomic design, making it ideal for field inspections, corrosion monitoring, quality control, and industrial maintenance. It is widely used for measuring the wall thickness of pipes, pressure vessels, tanks, sheets, and machined components.

• High-precision ultrasonic thickness measurement.
• Non-destructive testing (NDT) technology.
• Measuring range up to 220 mm (material dependent).
• Resolution of 0.01 mm for accurate readings.
• Accuracy of ±0.5% of reading.
• Large backlit LCD for easy viewing.
• Stores up to 500 measurement records.
• Adjustable sound velocity for multiple materials.
• Lightweight, compact, and ergonomic handheld design.
• Battery-powered using 3 × AAA batteries.
• Ideal for corrosion and wall thickness monitoring.
• Suitable for field, laboratory, and industrial inspections.

• Oil and gas pipelines
• Pressure vessels and storage tanks
• Boilers and heat exchangers
• Shipbuilding and marine maintenance
• Metal fabrication industries
• Power generation plants
• Aerospace and automotive inspection
• Quality control laboratories
• Manufacturing industries
• Preventive maintenance and corrosion monitoring
